€1,421.88 Vat excl.
The Lynx-ion BMS reduces wiring and installation time to a minimum: it combines four fused battery connections, four fused DC load connections, a safety contactor and a current shunt with a BMS in one compact enclosure.
 |

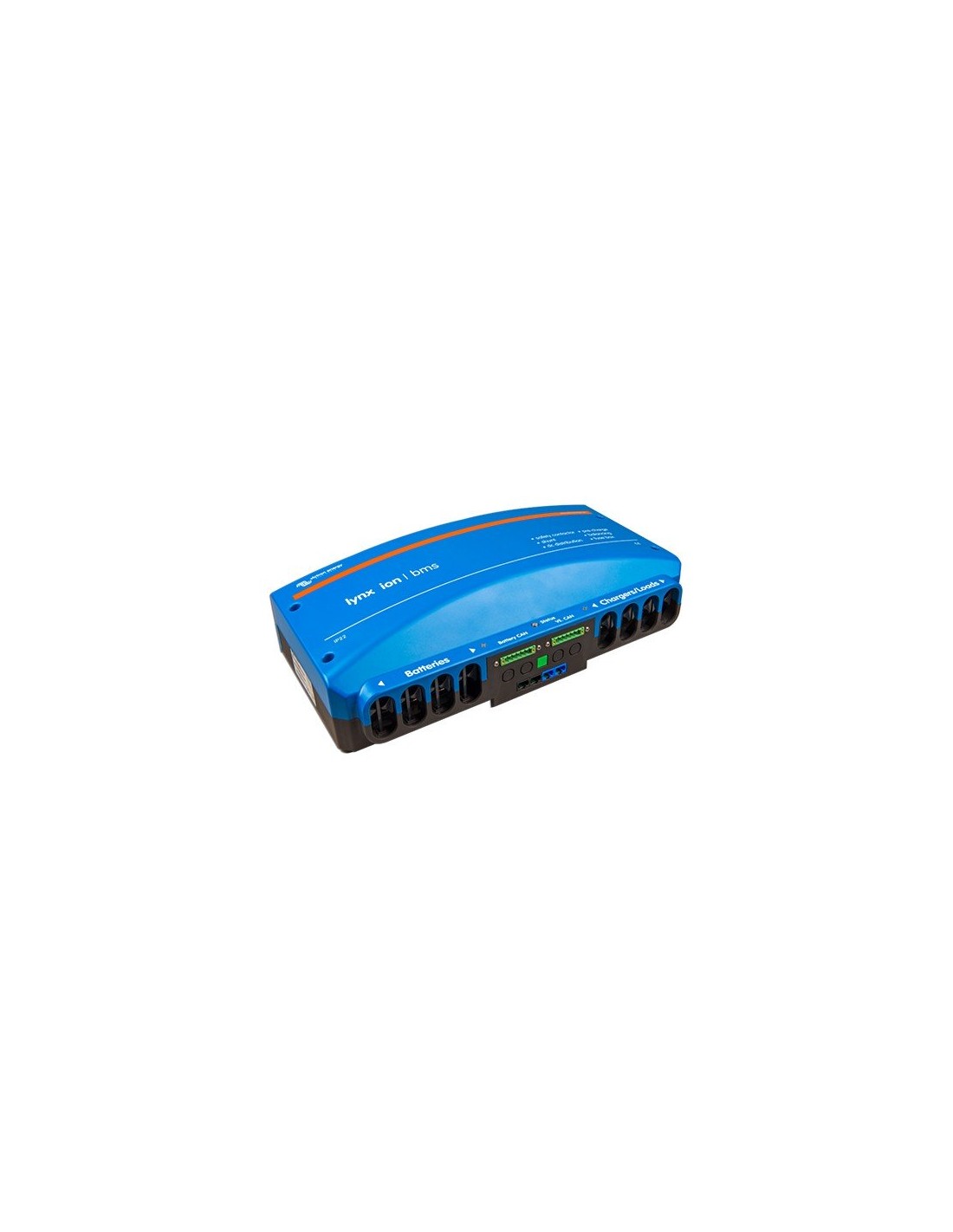

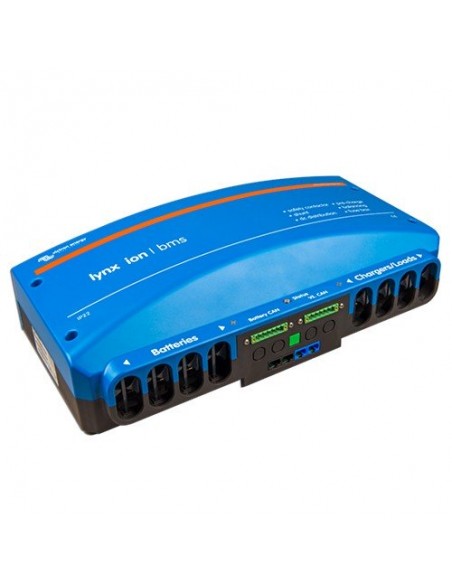

Battery monitors 400A Lynx Ion BMS Victron Energy |
The Lynx-ion BMS reduces wiring and installation time to a minimum: it combines four fused battery connections, four fused DC load connections, a safety contactor and a current shunt with a BMS in one compact enclosure.
| Product code: LYN050140000 | ||
 |
Download product Datasheet | |
 |
2 Years Guaranteed |
Galvanically isolated CAN-Bus communication
Protocol: VE.Can/NMEA2000
BMS - Battery Management System
Each battery module comes with an integrated battery management system (BMS). This is an intelligent electronic module (slave BMS) that measures all cell voltages, temperatures and controls the balancing.
Each slave BMS has an intelligent balancing system that allows balancing on battery cell and module level.
The battery modules communicate by CAN-BUS with the Lynx Ion BMS. The status of the battery modules are collected and monitored. If the measured values from a battery module exceeds the limit, the Lynx Ion BMS will automatically takes action to protect the connected battery modules
Safety
The Lynx Ion BMS is the safety and control unit of the system. It protects the connected battery modules against over-charging, over-discharging, over-temperature and under-temperature.
The Lynx Ion BMS also takes care of the balancing on battery cell and module level. In order to guarantee a safe operation of the system, a safety contactor is implemented that can disconnect the batteries from the chargers and loads when necessary.
Downloads |
Dataheet EN [LINK] | |
For all documents product to download, please visit the web site:
|
||
