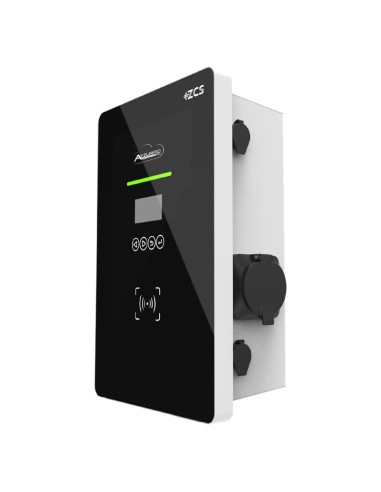

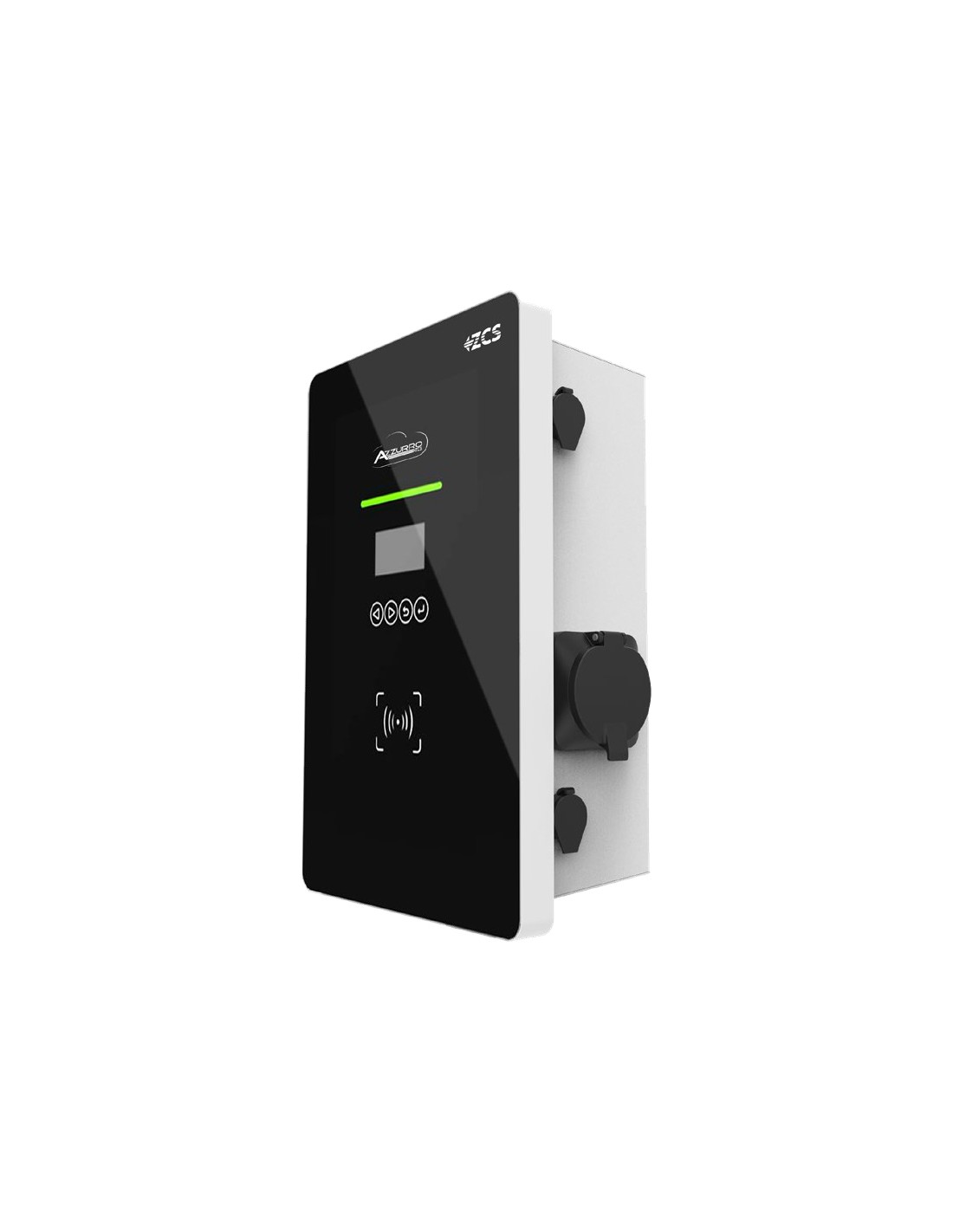

ZCS Azzurro 7kW single-phase charging column for electric vehicles
ZCS Azzurro 7kW single-phase charging column for electric vehicles

ZCS Azzurro 7kW single-phase charging column for electric vehicles

ZV1-7K
€639.11
VAT included 10 %

€581.01 Vat excl.

The Zucchetti Centro Sistemi charging station is available in the 7KW single-phase, smart power model, which can be connected to any existing photovoltaic system, in addition to the ZCS Azzurro production and storage inverters.



ZCS Azzurro 7kW single-phase charging column for electric vehicles

The Zucchetti Centro Sistemi charging station is available in the 7KW single-phase, smart power model, which can be connected to any existing photovoltaic system, in addition to the ZCS Azzurro production and storage inverters.

The entire range is equipped with the innovative ZCS Predictive Energy Intelligence system capable of managing energy flows and predicting energy needs for the best use of electric vehicles, photovoltaic systems and storage systems.

Main features

  • Compatible with all electric vehicles;
  • Ability to monitor and control multiple devices;
  • Simple installation, on the wall or on a support;
  • Touch display and keyboard.

For more details, download the following documents:

Technical features

AC input technical data
Connection type Single Phase (1PH + Neutral + PE)
AC input voltage 230V +/- 10%
AC input frequency 50Hz
AC output technical data
AC output voltage 230V +/- 10%
Maximum AC output current 32A
Maximum power 7.4 kW (limitable from display)
General data
Installation Wall mounted / On metal support
Connector Type2 connector with shutter – wiring not included (optional)
LCD screen Graphic screen
RFID cards 2 included
Energy Meter Certificate MID
Degree of protection IP54
Cooling down Natural convection
Dimensions 356 × 221 × 136 mm
Weight 3kg
Protections and safety
Integrated protections Over and under voltage, Power overload, Short circuit, Leakage currents, Lack of earth, Surge, Over and under temperature
Applicable safety standards IEC 61851-1: 2017, IEC 62916-2: 2016
Warranty 2 years

Customer service

0882 22 82 47
[email protected]

Typology
Single-phase
Power
7kW
8370000029908
