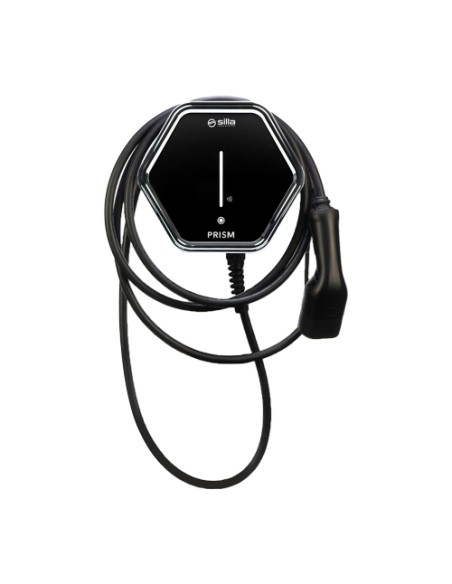

Single-phase charging column 7.4kW Prism Solar RFID 5M cable electric vehicles

Single-phase charging column 7.4kW Prism Solar RFID 5M cable electric vehicles

Name: Single-phase charging column 7.4kW Prism Solar RFID 5M cable electric vehicles
Brand: Silla Industries
SKU: PBS01320205R
Price: 626.76 EUR
Availability: InStock

Reference PBS01320205R

€626.76

VAT included 10 %

€569.78 Vat excl.

It is the top of the Prism range, a truly universal charger with the latest features. Management of the energy produced by a photovoltaic system, ethernet and wifi connectivity, timer for night charging, RFID reader, Prism Solar is already complete with sensors for load balancing and RCM for DC control, thus avoiding the purchase of a type B differential.

Prism is universal, it charges all cars with a Type2 connector, which is the standard in Europe. You can use it for charging electric vehicles, both fully electric and plug-in hybrid.

Single-phase charging column 7.4kW Prism Solar RFID 5M cable

Features

Prism is universal, it charges all cars with a Type2 connector, which is the standard in Europe. You can use it for charging electric vehicles, both fully electric and plug-in hybrid.

It is suitable for any single-phase meter, of any power;
Automatically adjusts consumption to avoid disconnection from the grid;
It uses the energy produced by a solar system to recharge the car;
Communicates with a storage system, such as a Powerwall;
It connects to the internet via Wi-Fi or via ethernet network (cable);
It is managed via smartphone, desktop and cloud;
Supplied with cable and Type 2 connector (the standard in Europe);
Supplied with the load balancing sensor;
Equipped with RFID reader and supplied with two RFID keys;
Resistant to rain and water jets, IP65 protection;
5m cable supplied.

For more details, download the following documents:

Datasheet: [Download]

Technical features:

ELECTRICAL CHARACTERISTICS
Protection class	IP65, IK10
Charging method	mode 3
Power supply	230V AC
Current consumption (max)	32A
Charging power (max)	7,4kW
Frequency	50 hz - 60 hz
Electrical safety class	class 1
MECHANICAL CHARACTERISTICS
Assembly	Surface mount to wall, poles or equivalent positions
Access	Even in places with unrestricted access
Inputs	Lever clamps 2.5 - 10mm²
Material	ABS
Grade of protection	IP 65
Self-consumption	Stand-by 2,5W - Maximum 7,5W
Dimensions without cable	263 x 238 x 88 mm
Weight	6,5kg.
