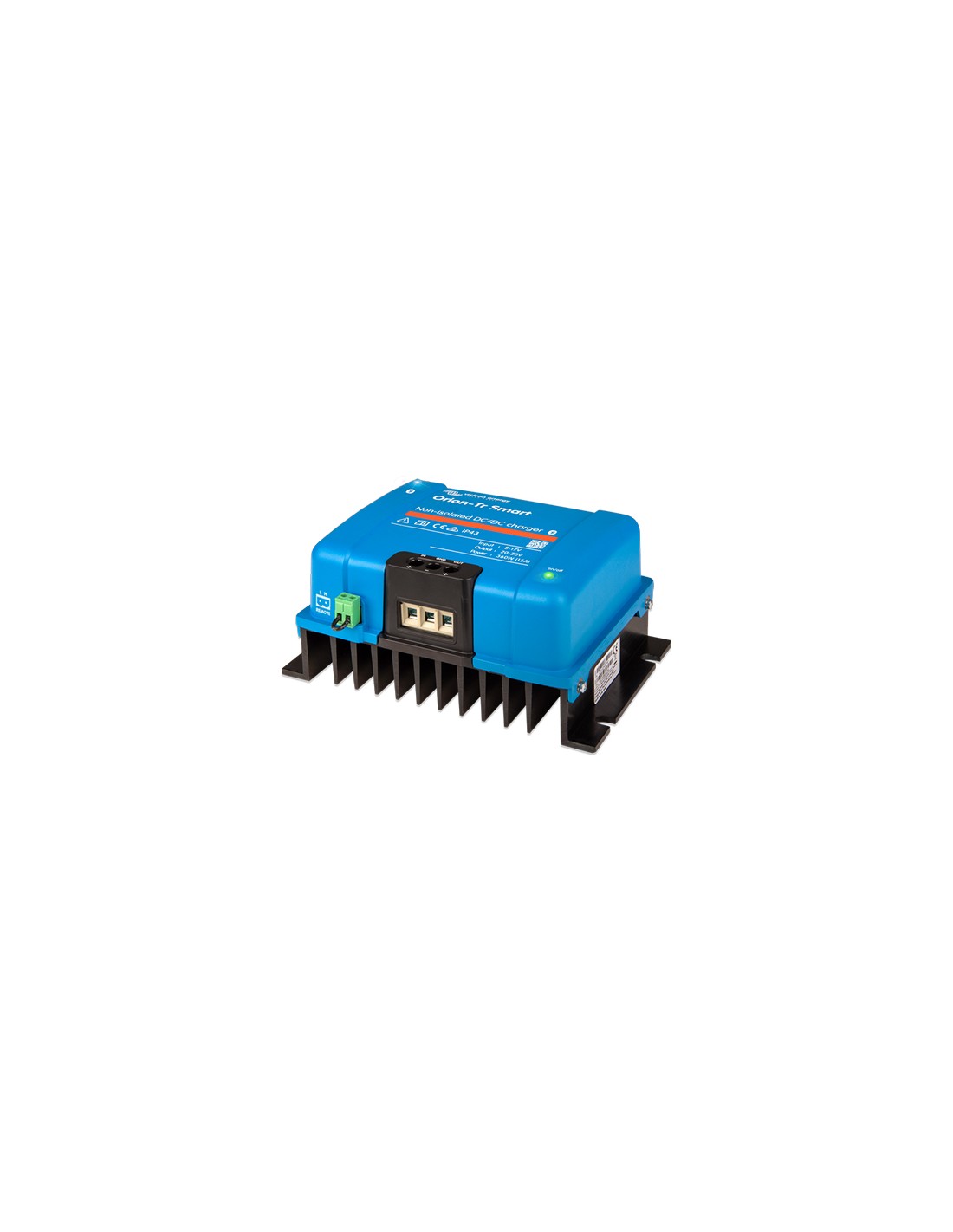

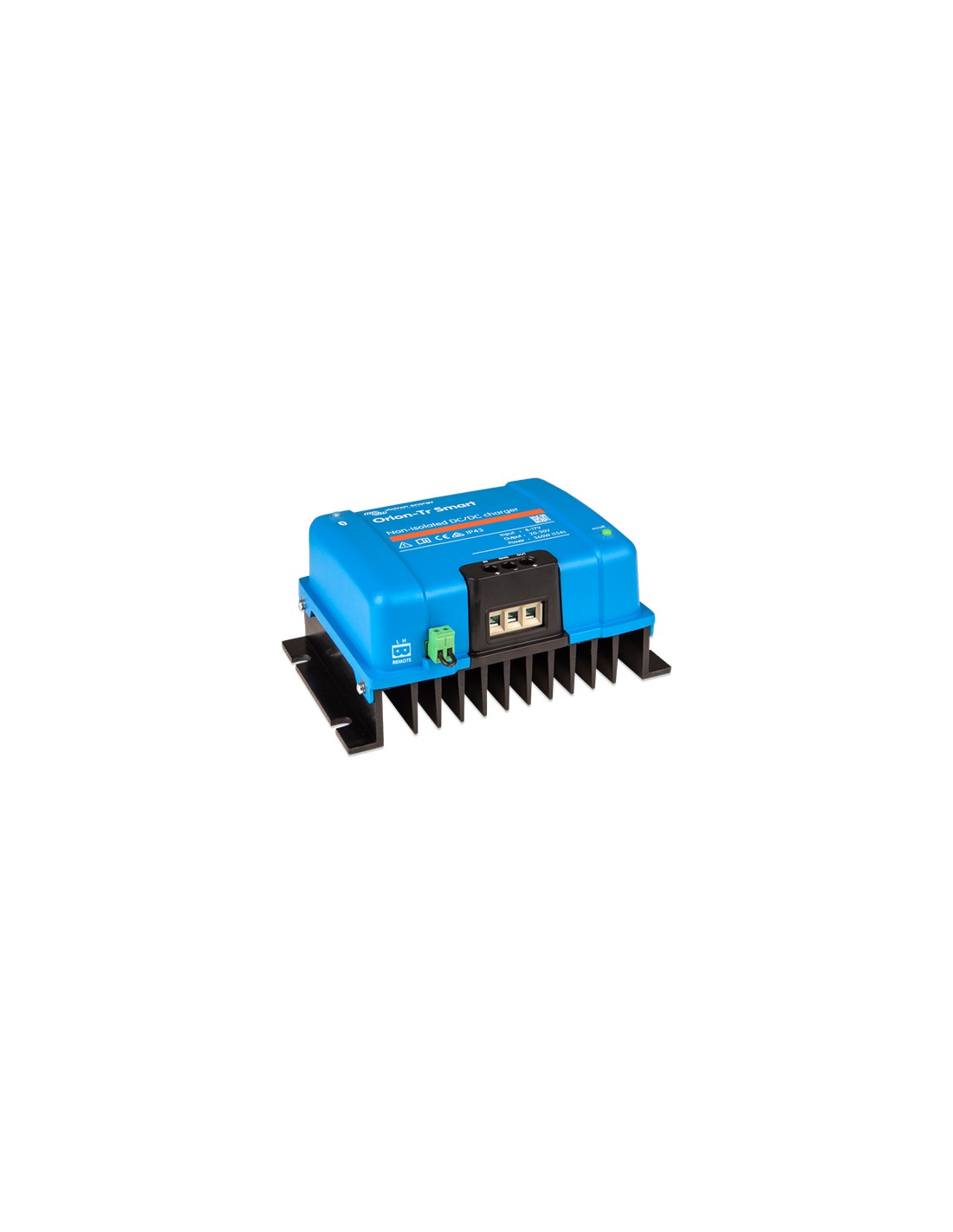

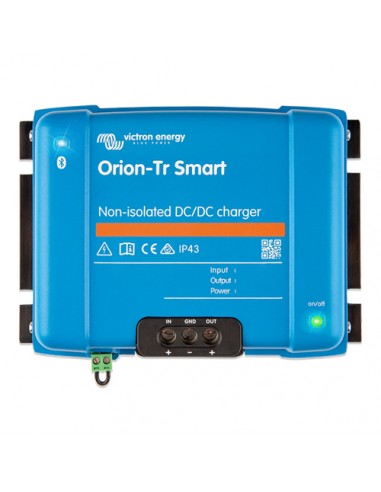

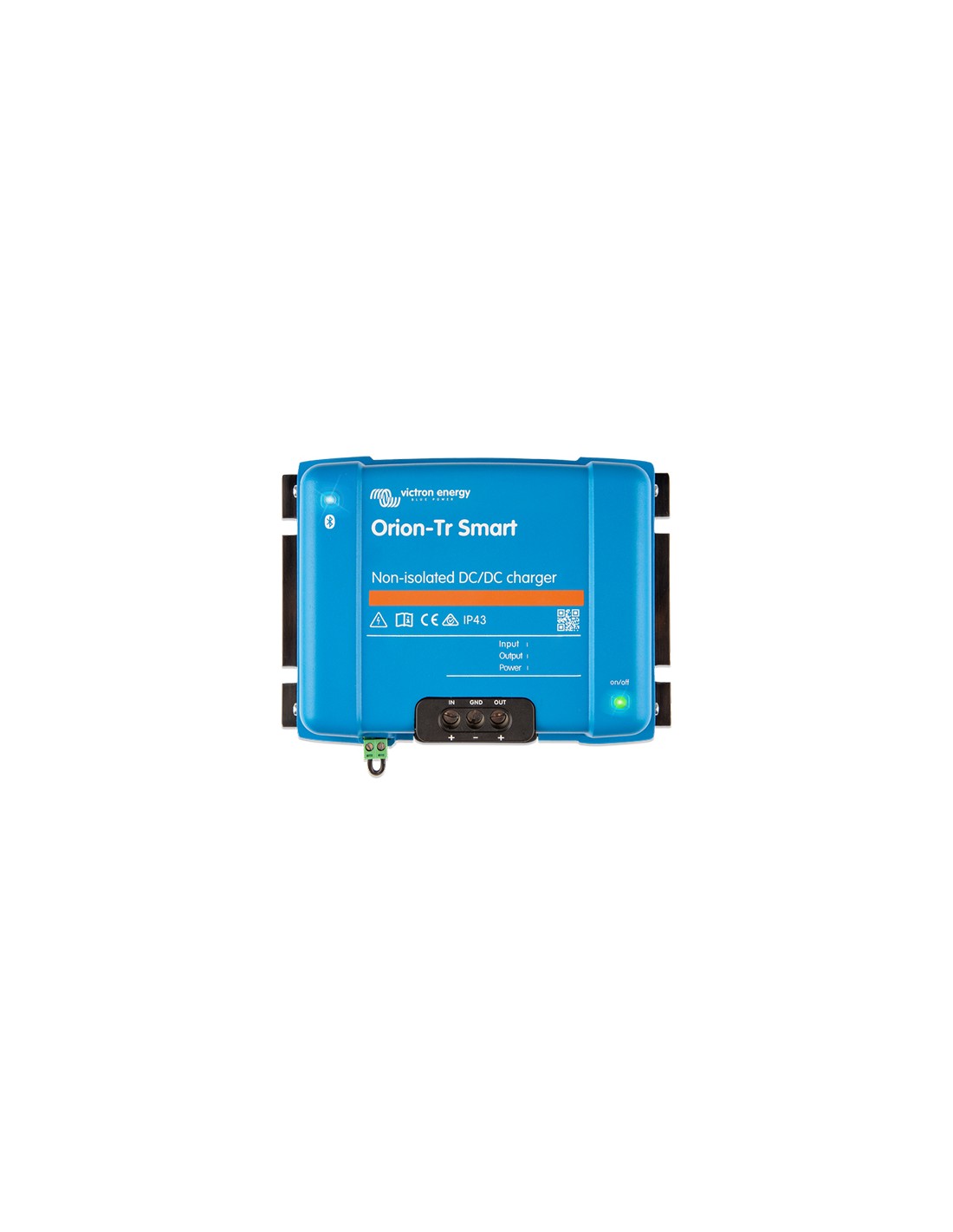

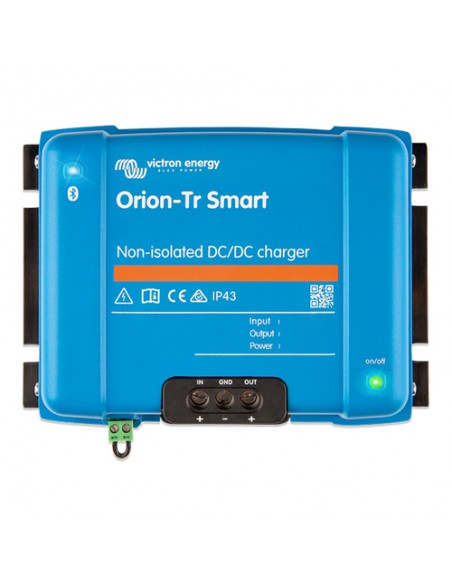

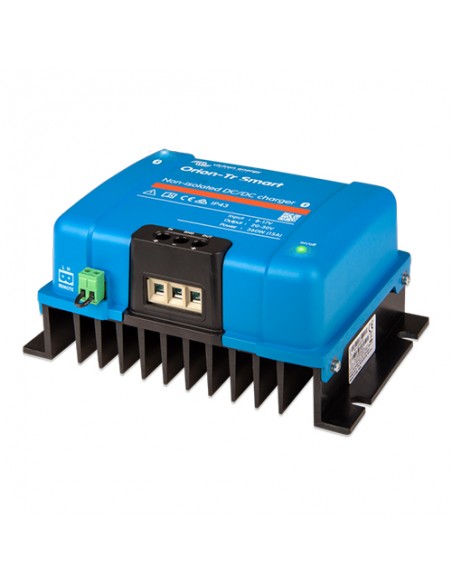

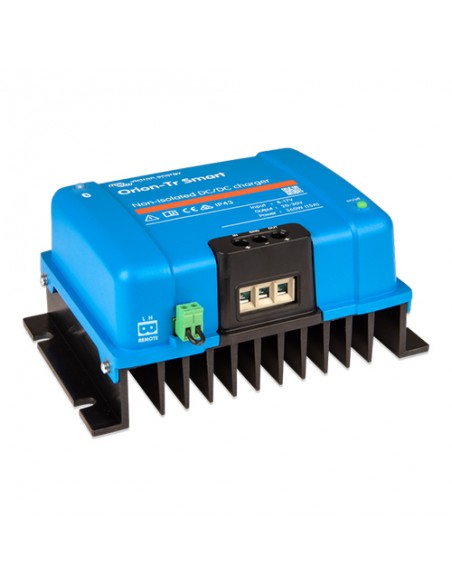

Orion-Tr Smart DC-DC Charger Non-Isolated 24/24 12A Victron Energy

---

Bluetooth Smart enabled
You can use any smartphone, tablet or other Bluetooth-enabled device for monitor, change settings or update the charger when new ones are available features.

Fully programmable
- Battery charging algorithm (configurable) or fixed output.
- Compatibility with intelligent alternator: mechanism for detecting the operation of the engine.

3-phase adaptive charging algorithm: first charging phase - absorption - maintenance
• In lead-acid batteries it is important that the time of absorption is short, to avoid overcharging the battery. After a deep discharge, instead, the absorption time is automatically extended in order to charge the battery completely.
• In lithium batteries, the absorption time is fixed: 2 hours by default.
• Alternatively, a fixed output voltage can be chosen.

Remote on-off
A remote on / off switch or a bipolar connector relay contact can be connected.
Alternatively, the H (right) terminal of the bipolar connector can be turned to the positive pole of the battery, or the L (left) terminal of the bipolar connector can be turned to the negative pole battery (or on a vehicle chassis, for example).

All models are short circuit resistant and can be connected in parallel for increase the output current
An unlimited number of units can be connected in parallel.

Protected against high temperature
The output current will decrease with a high ambient temperature.

IP43 protection
When installed with screw terminals oriented downwards.

Screw terminals
No special tools are required for installation.

Input fuse (not replaceable)

For more details, download the following documents:

• Datasheet: [Download]

---
