MPPT: Ultra Fast Maximum Power Point Tracking
The MPPT VE.Can SmartSolar charger connects to a PV array of 150 or 250 Volt Voc and will automatically detect and charge your 12, 24, or 48V battery bank with current ranging from 70 to 100A depending on the model. The charge settings are fully programmable and can even be set up for different battery chemistries, like lead-acid, lithium and others.

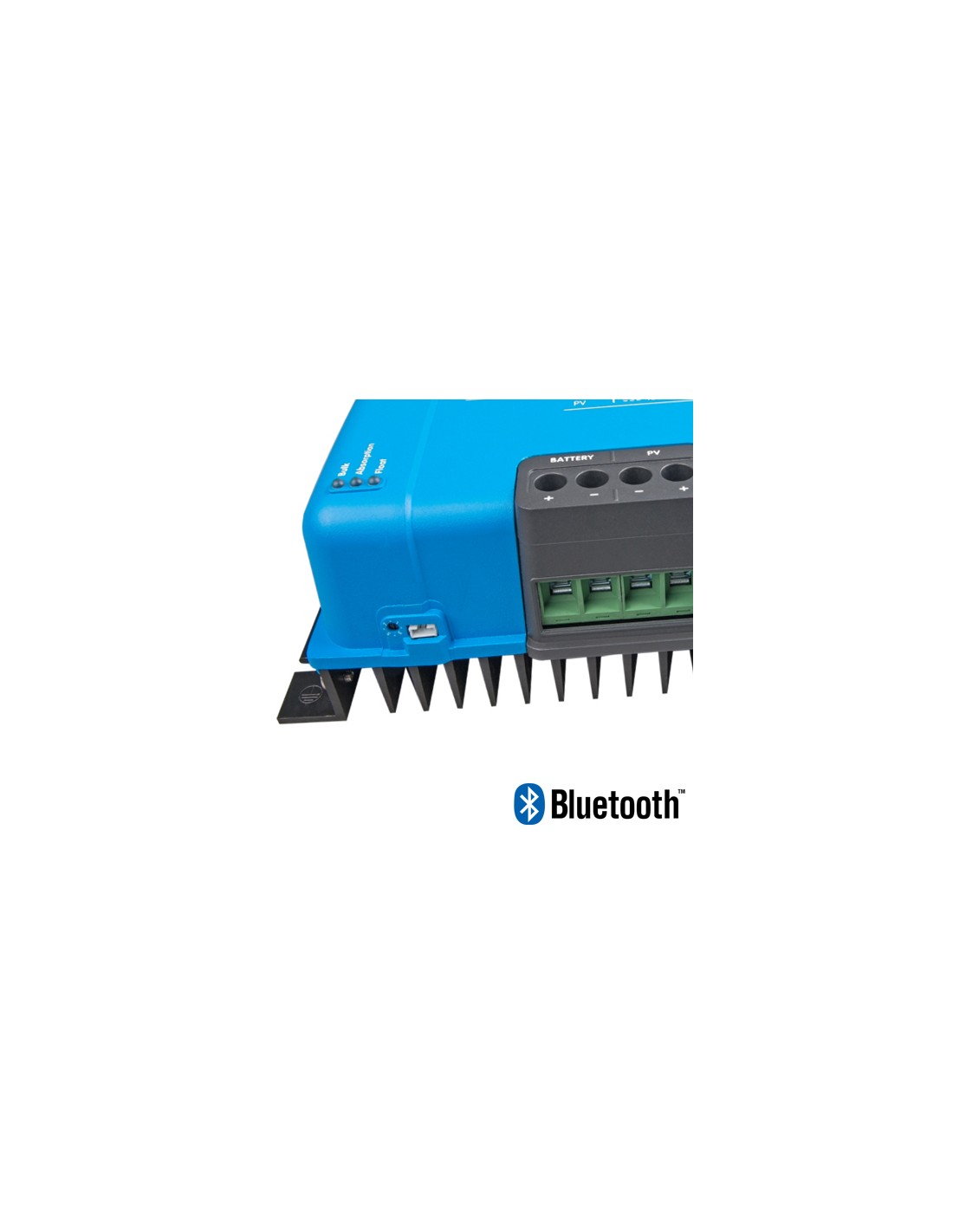

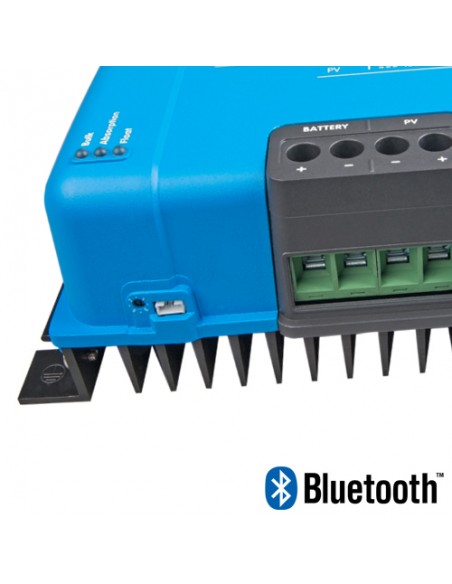

Control Your Charger Remotely
The MPPT VE.Can SmartSolar charger can be remotely controlled and configured over Bluetooth via the VictronConnect App. This allows device set-up, management, and at-a-glance information, such as battery voltage and current, PV voltage and current, and historical data.
Daisy Chain Additional Units
The VE.Can SmartSolar charger is equipped with CAN bus ports. This allows for communication with additional VE.Can SmartSolar chargers. The additional units are simply “daisy chained” to each other with a single RJ45 cable between the individual units. When connected to each other, all individual VE.Can SmartSolar chargers, will synchronise their charge stages. They can also send their data, via a single cable, to a GX monitoring device.
Remote Monitoring and Control
If the GX device is connected to the internet, the Victron Remote Management Portal (VRM) provides access to the full power of your solar charger(s).
SmartSolar Control Display
The VE.Can SmartSolar charger is also equipped with a VE.Direct port like our other MPPT solar chargers. This port can be for single unit monitoring or for streetlight control. The remote on/off connector can be externally controlled by a third-party device like a lithium battery. An optional plug-in LCD display/control provides live-data, set-up and management, straight from the face of the device.
Technical Features
CHARGE CONTROLLER
- Battery voltage: 12 / 24 / 48V Auto Select (software tool needed to select 36V)
- Rated charge current: 70A
- Nominal PV power: 12V 1000W; 24V 2000W; 36V 3000W; 48V 4000W
- Max. PV short circuit current: 35A
- Maximum PV open circuit voltage: 250V absolute maximum coldest conditions 245V start-up and operating maximum
- Maximum efficiency: 99%
- Self-consumption: Less than 35mA @ 12V / 20mA @ 48V
- Charge voltage 'absorption': Default setting: 14,4 / 28,8 / 43,2 / 57,6V (adjustable with: rotary switch, display, VE.Direct or Bluetooth)
- Charge voltage 'float': Default setting: 13,8 / 27,6 / 41,4 / 55,2V (adjustable: rotary switch, display, VE.Direct or Bluetooth)
- Charge voltage 'equalization': Default setting: 16,2V / 32,4V / 48,6V / 64,8V (adjustable)
- Charge algorithm: multi-stage adaptive (eight preprogrammed algorithms) or user defined algorithm
- Temperature compensation: -16 mV / -32 mV / -64 mV / ° C
- Protection: Battery reverse polarity (fuse, not user accessible) PV reverse polarity / Output short circuit / Over temperature
- Operating temperature: -30 to +60°C (full rated output up to 40°C)
- Humidity: 95%, non-condensing
- Maximum altitude: 5000m (full rated output up to 2000m)
- Environmental condition: Indoor, unconditioned
- Pollution degree: PD3
- Data communication port: VE.Direct or Bluetooth
- Remote on/off: Yes (2 pole connector)
- Programmable relay: DPST AC rating: 240VAC / 4A DC rating: 4A up to 35VDC, 1A up to 60VDC
- Parallel operation: Yes (notsynchronized)
ENCLOSURE
- Colour: Blu (RAL 5012)
- PV terminals: 35 mm² / AWG2
- Battery terminals: 35mm² / AWG2
- Protection category: IP43 (electronic components), IP22 (connection area)
- Weight: 3Kg
- Dimensions (h x l x p): 185 x 250 x 95 mm
STANDARDS
- Safety: EN / IEC 62109-1, UL 1741, CSA C22.2
