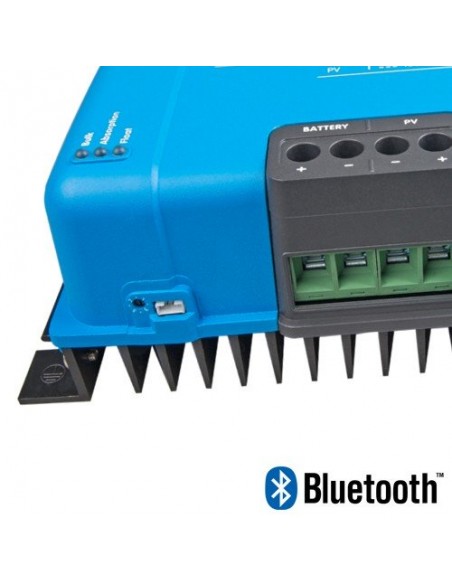

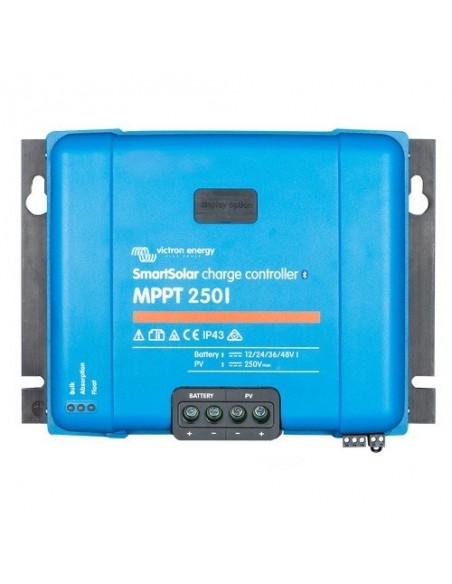

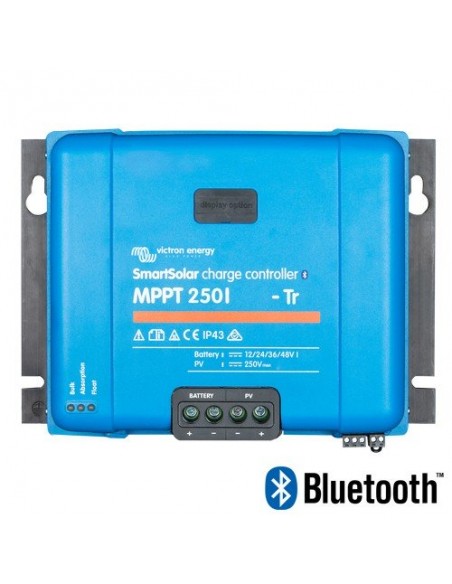

Smartsolar MPPT Charge Controller 150/85-TR 150Voc 85A Victron Energy
Smartsolar MPPT Charge Controller 150/85-TR 150Voc 85A Victron Energy
Smartsolar MPPT Charge Controller 150/85-TR 150Voc 85A Victron Energy
Smartsolar MPPT Charge Controller 150/85-TR 150Voc 85A Victron Energy
Smartsolar MPPT Charge Controller 150/85-TR 150Voc 85A Victron Energy
Smartsolar MPPT Charge Controller 150/85-TR 150Voc 85A Victron Energy

Smartsolar MPPT Charge Controller 250/60-TR 250Voc 60A Victron Energy

SCC125060221
Delivery: 7 days
€447.72
VAT included 10 %

€407.02 Vat excl.

Ultra-fast Maximum Power Point Tracking (MPPT). Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.



Are you a dealer or installer?

For bulk purchase of Victron Energy products called the n. 0882 228247, or write to [email protected]

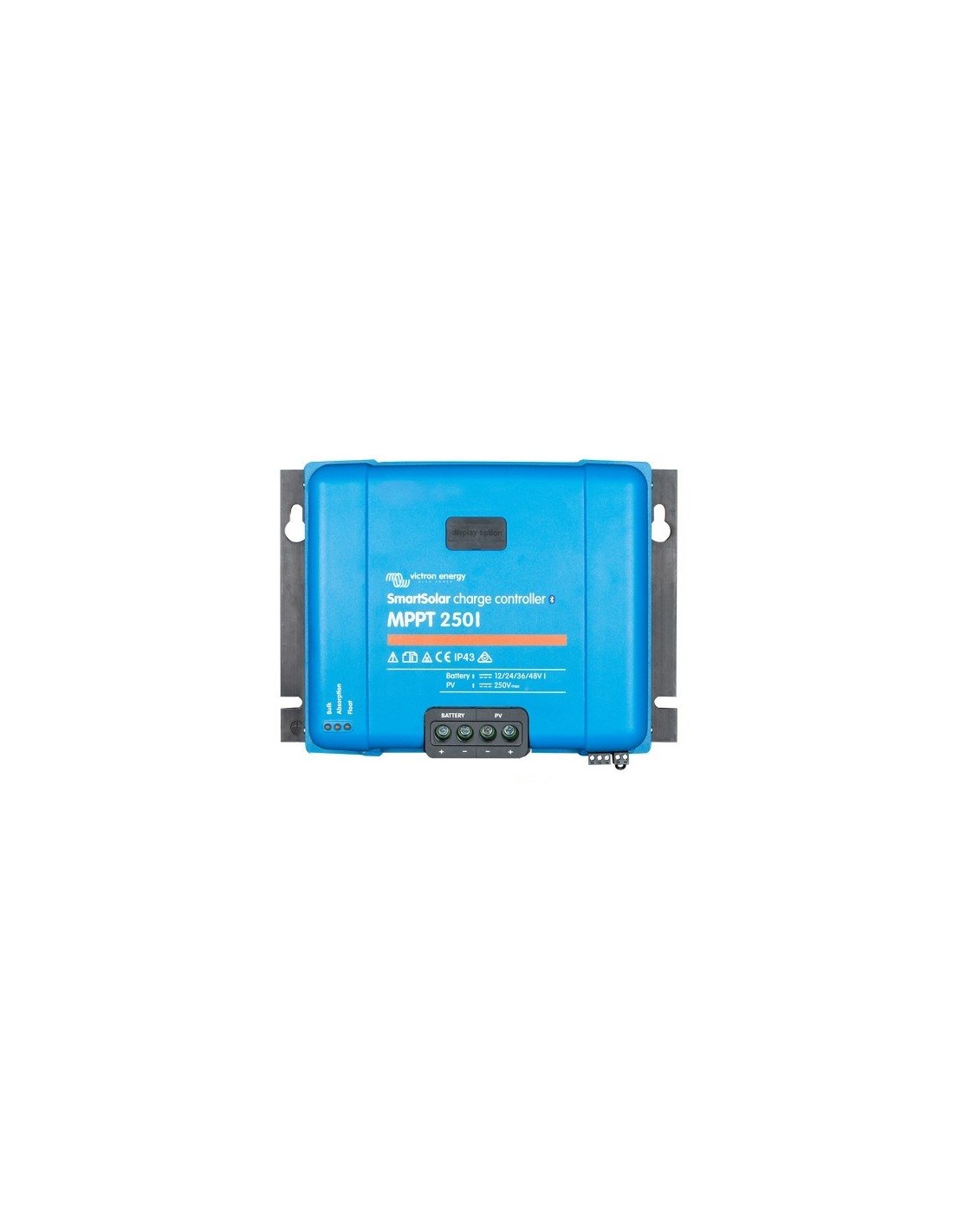

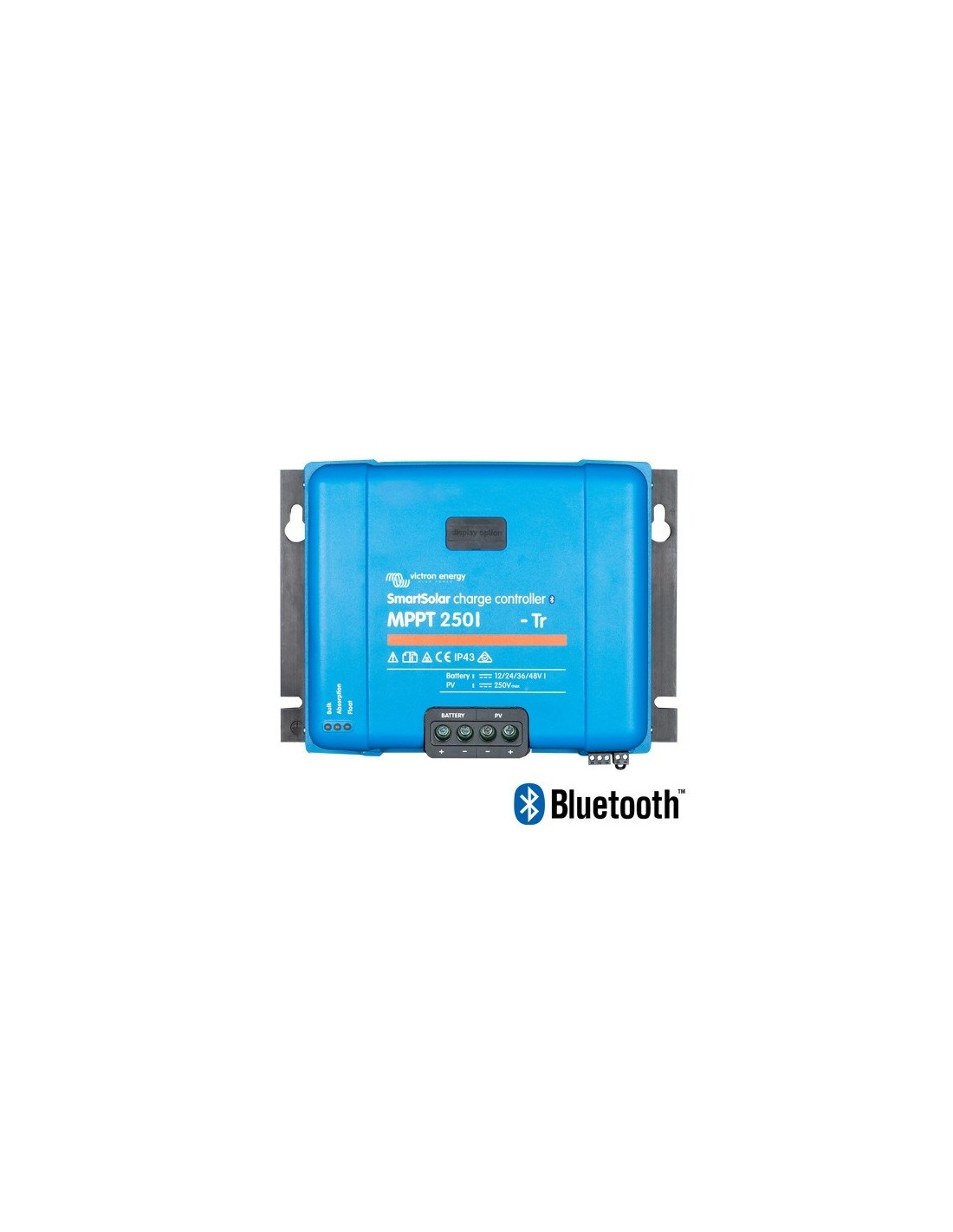

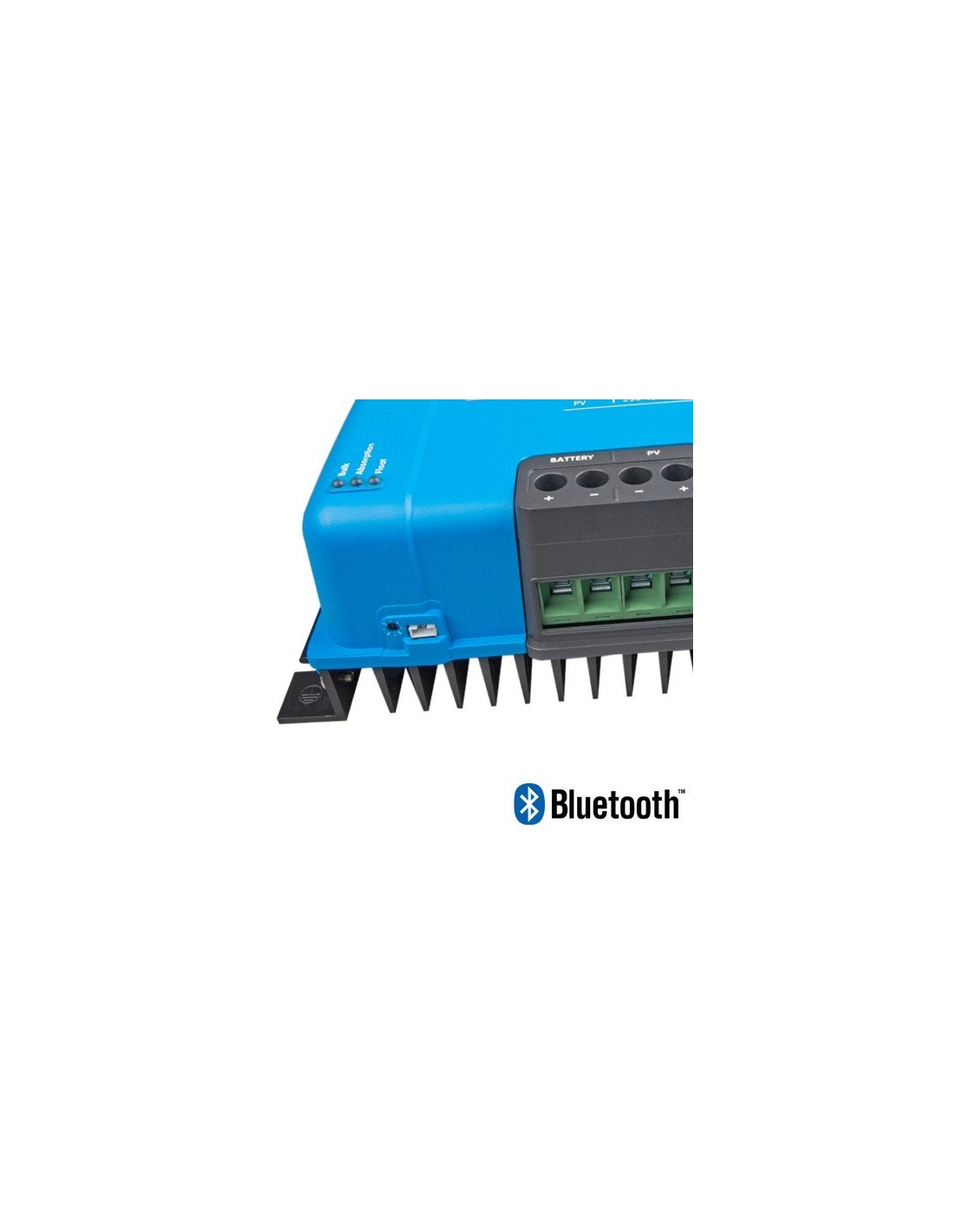

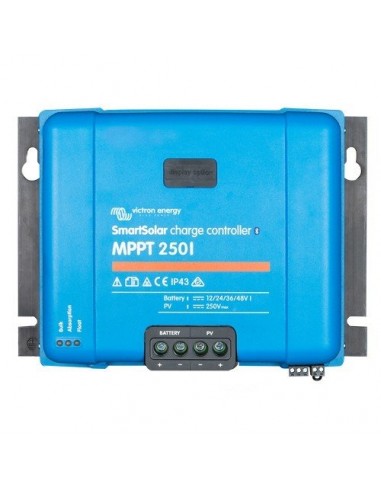

SmartSolar MPPT Charge Controller

250/60-TR 250Voc 60A

  • Ultra-fast Maximum Power Point Tracking (MPPT)
  • Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.

Technical Features

Codice prodotto: SCC125060210
Download the Data Sheet

Warranty

2 Year Warranty

Description

Ultra-fast Maximum Power Point Tracking (MPPT)
Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to  0% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.

Advanced Maximum Power Point Detection in case of partial shading conditions
If partial shading occurs, two or more maximum power points may be present on the power-voltage curve. Conventional MPPTs tend to lock to a local MPP, which may not be the optimum MPP. The innovative SmartSolar algorithm will always maximize energy harvest by locking to the optimum MPP.

Outstanding conversion efficiency
No cooling fan. Maximum efficiency exceeds 98%.

Flexible charge algorithm
Fully programmable charge algorithm (see the software page on ourwebsite), and eight pre-programmed algorithms, selectable with a rotary switch (see manual for details).

Extensive electronic protection
Over-temperature protection and power derating when temperature is high. PV short circuit and PV reverse polarity protection. PV reverse current protection.

Internal temperature sensor
Compensates absorption and float charge voltage for temperature.

Bluetooth Smart built-in: dongle not needed
The wireless solution to set-up, monitor and update the controller using Apple and Android smartphones, tablets or other devices.

VE.Direct
For a wired data connection to a Color Control panel, PC or other devices

Remote on-off
To connect for example to a VE.BUS BMS.

Programmable relay
Can be programmed (a.o. with a smartphone)to trip on an alarm, or other events.

Optional: pluggable LCD display
Simply remove the rubber seal that protects the plug on the front of the controller, and plug-in the display.

   Downloads

Data Sheet [LINK]
Multilingual Manual [LINK]

You can Download All The Other Documentation Web site:
www.victronenergy.com

   Customer service

0039 (0)882 22 82 47
[email protected]
Product Code
SCC125060221
Technology (MPPT - PWM)
MPPT
Nominal system voltage (VDC)
12 / 24 / 48 VDC Auto work
Rated Battery Current
60A
Max. PV input power
12V (860W)24V (1720W)48V (3440W)
Self-consumption
12V (35 mA)48V (20 mA)
Terminal
35 mm²
Working temperature
-30°C - +60°C
Overall dimension
185 x 250 x 95mm
Net weight
3kg
8719076050841
