Charge Controller MPPT BlueSolar 75/10 75 Voc 10A Victron Energy

SCC010010050R
Delivery: 7 days
€76.81
VAT included 10 %

€69.83 Vat excl.

The charging BlueSolar regulator, especially in case of cloudy sky, when the intensity of light is constantly changing, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and up to 10 % compared to slower MPPT controllers.



Are you a dealer or installer?

For bulk purchase of Victron Energy products called the n. 0882 228247, or write to [email protected]

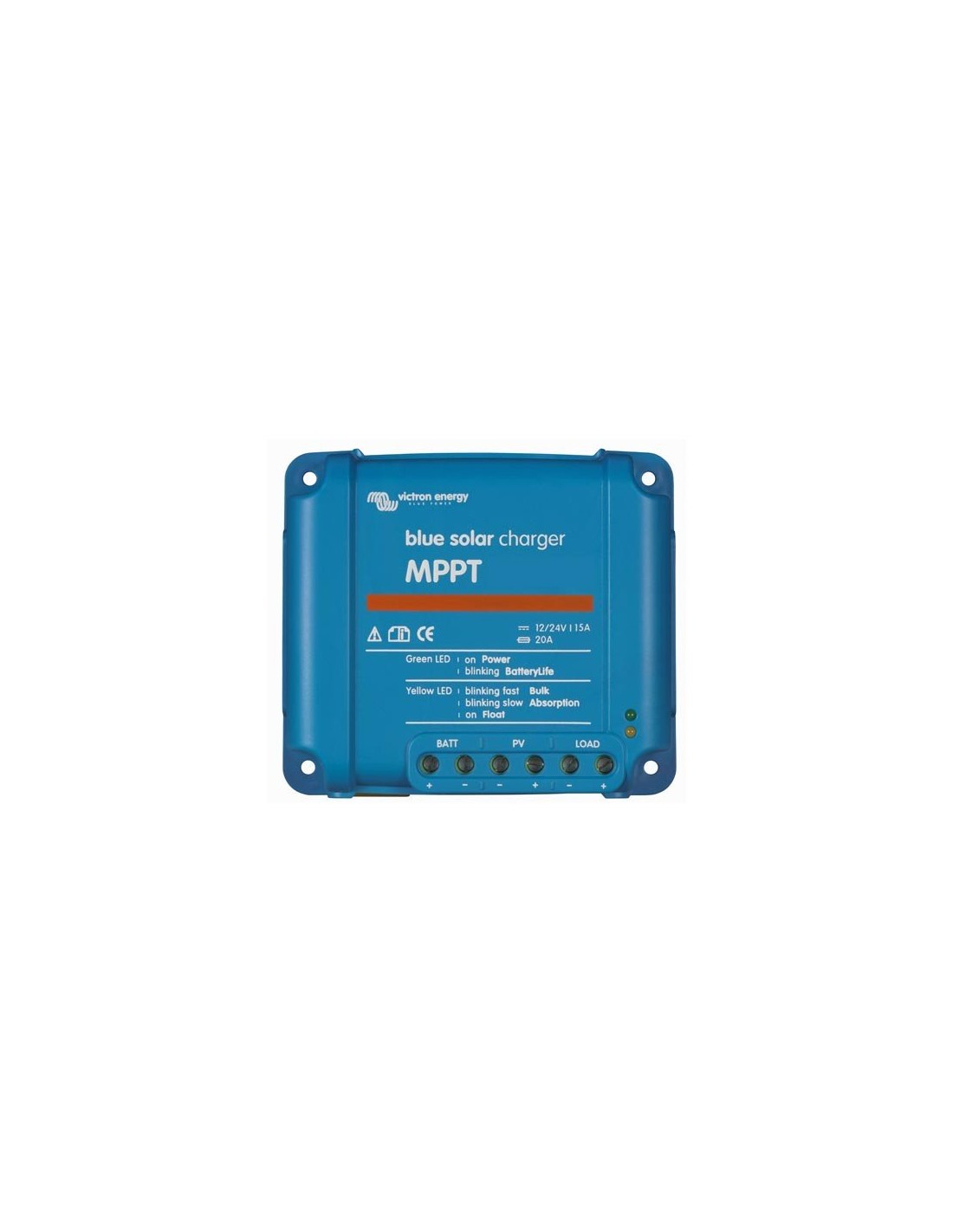

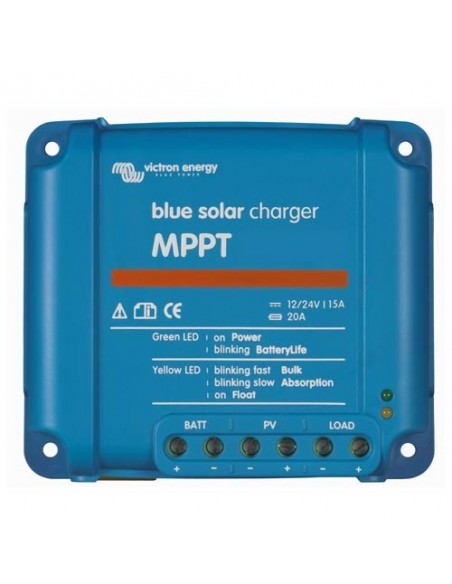

BlueSolar MPPT Charge Controller

75/10 75Voc 10A

The charging BlueSolar regulator, especially in case of cloudy sky, when the intensity of light is constantly changing, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and up to 10 % compared to slower MPPT controllers.

Technical Features

Product Code: SCC010010050R
Download the Datasheet

Warranty

2 Year Warranty

Example of Connection






Manuals, Technical Specifications and Certifications
Data Sheet[LINK]

Assistence
  For service or plant configuration call 0882 22 82 47
  For technical assistance, write to [email protected]
Product Code
SCC010010050R
Technology (MPPT - PWM)
MPPT
Nominal system voltage (VDC)
12 / 24 VDC Auto work
Rated Battery Current
10A
Max. PV input power
12V (135W)24V (270W)
Self-consumption
10 mA
Terminal
6 mm²
Working temperature
-30°C - +60°C
Overall dimension
100x113x40 mm
Net weight
0.5kg
8380000002061
