Regolatore di Carica MPPT Blue Solar 150/45 150Voc 45A Victron Energy
Regolatore di Carica MPPT Blue Solar 150/45 150Voc 45A Victron Energy

Charge Controller MPPT BlueSolar 150/70-TR 150Voc 70A Victron Energy

SCC010070200
Delivery: 7 days
€341.09
VAT included 10 %

€310.08 Vat excl.

The charging BlueSolar regulator, especially in case of cloudy sky, when the intensity of light is constantly changing, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and up to 10 % compared to slower MPPT controllers.



Are you a dealer or installer?

For bulk purchase of Victron Energy products called the n. 0882 228247, or write to [email protected]

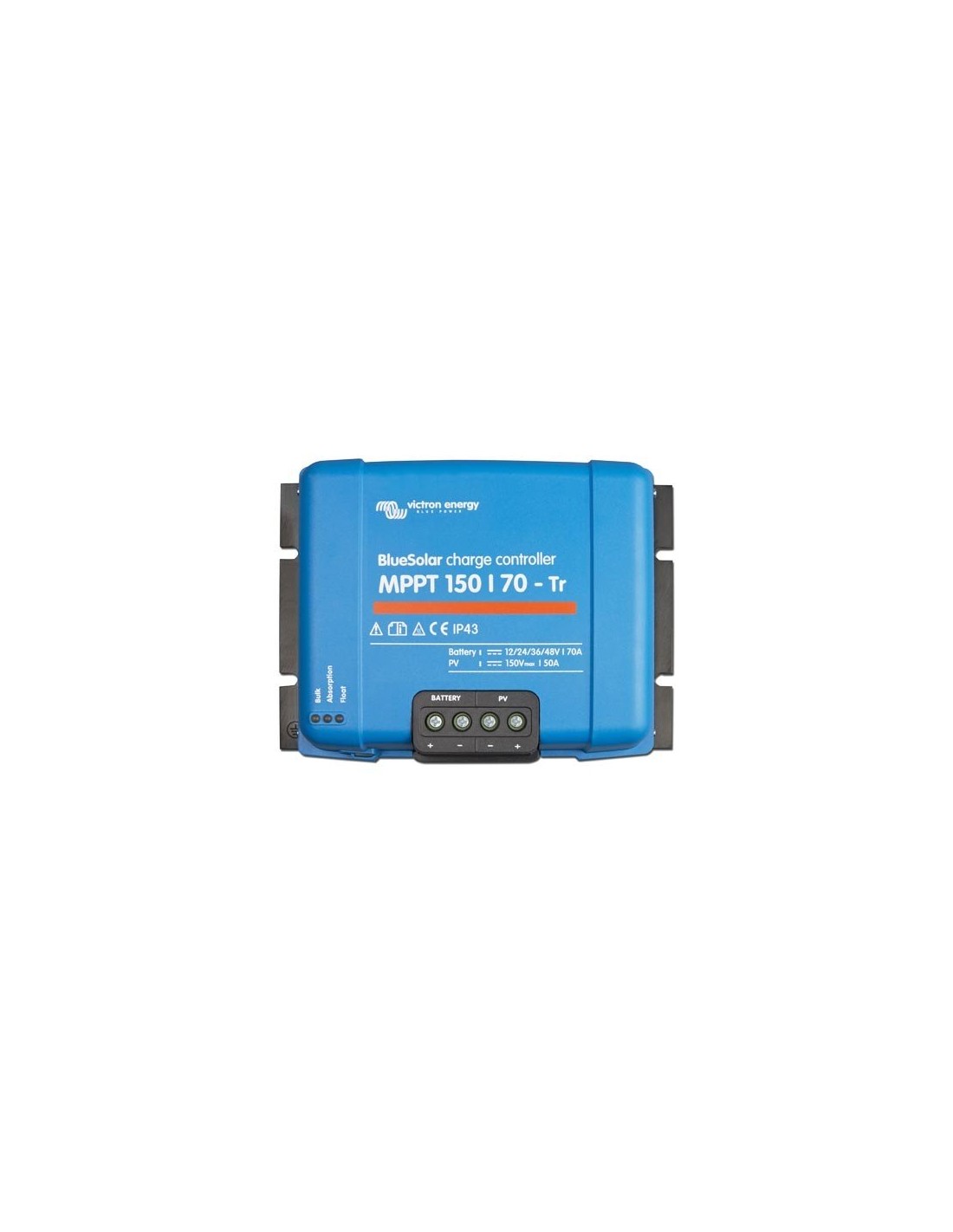

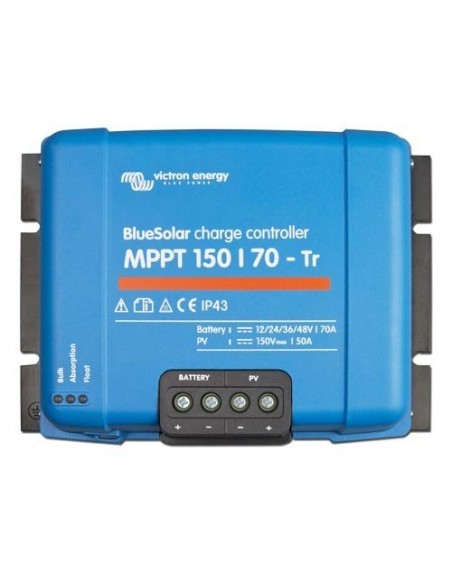

BlueSolar MPPT Charge Controller

150/70-TR 150Voc 70A

The charging BlueSolar regulator, especially in case of cloudy sky, when the intensity of light is constantly changing, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and up to 10 % compared to slower MPPT controllers.

MPPT (Maximum Power Point Tracking of) ultra fast

Especially in case of cloudy sky, when the light intensity changes continuously, a control device MPPT ultra fast help to strengthen the collection of energy up to 30% more than the PWM charge controllers and up to 10% more than to slower MPPT control devices.


MPPT (Maximum Power Tracking of advanced) Points in case of partial shade conditions.

In case of partial shade, it is possible that there are two or more maximum power points on the power-voltage curve. Classic MPPT tend to lock to a local MPP that may not be the optimum MPP. Lìinnovativo algorithm BlueSolar always optimize to maximize collection of jamming energy to the optimum MPP.

Technical Features

Product Code: SCC010070200
Download the Datasheet

Warranty

2 Year Warranty

Example of Connection






Manuals, Technical Specifications and Certifications
Data Sheet [LINK]

You can Download All The Other Documentation Web site:
www.victronenergy.com

Assistence
  For service or plant configuration call 0882 22 82 47
  For technical assistance, write to [email protected]
Product Code
SCC010070200
Technology (MPPT - PWM)
MPPT
Nominal system voltage (VDC)
12 / 24 / 48 VDC Auto work
Rated Battery Current
70A
Max. PV input power
12V (1000W)24V (2000W)48V (4000W)
Self-consumption
10 mA
Terminal
35mm²
Working temperature
-30°C - +60°C
Overall dimension
215x250x95 mm
Net weight
3kg
8380000002634
