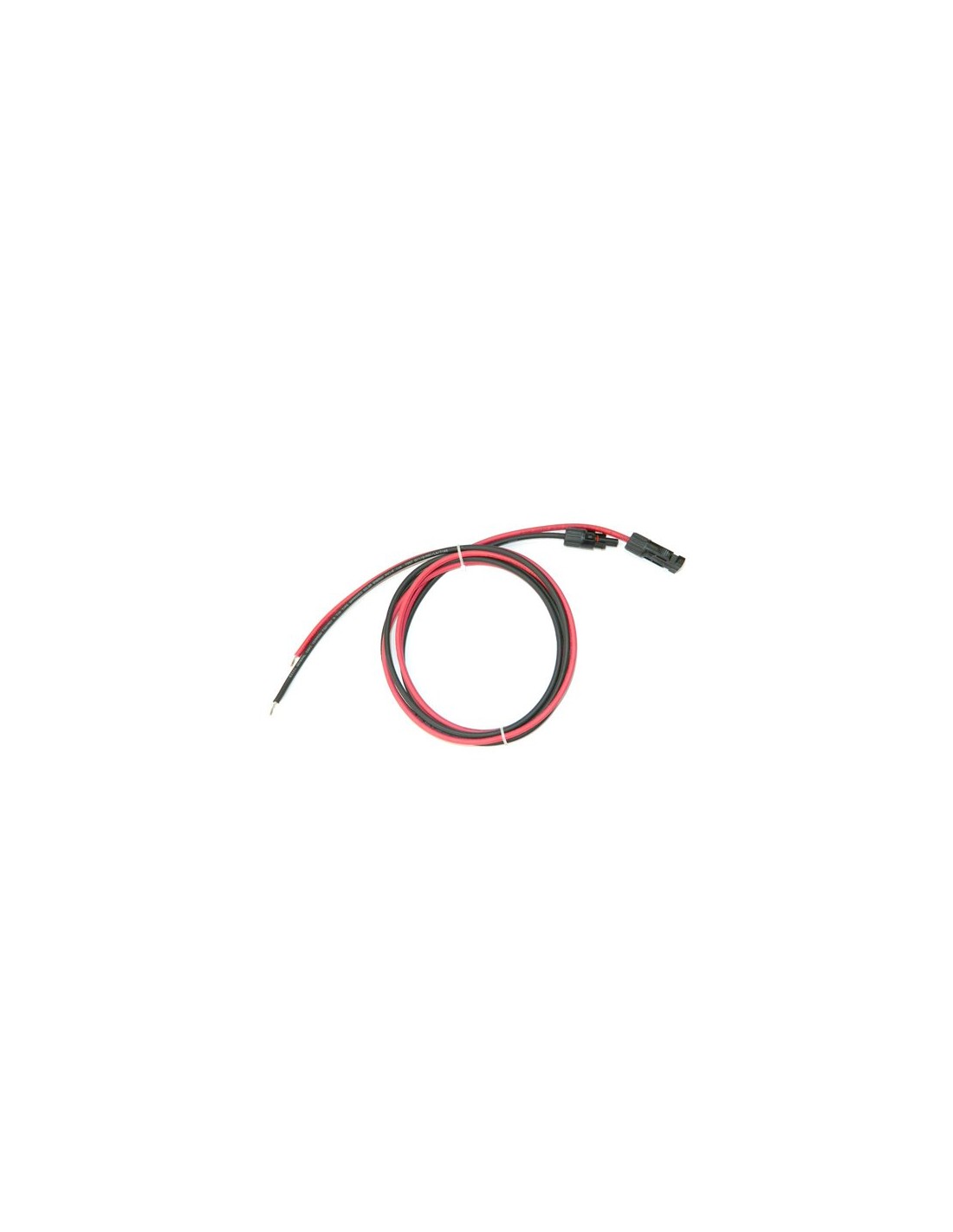

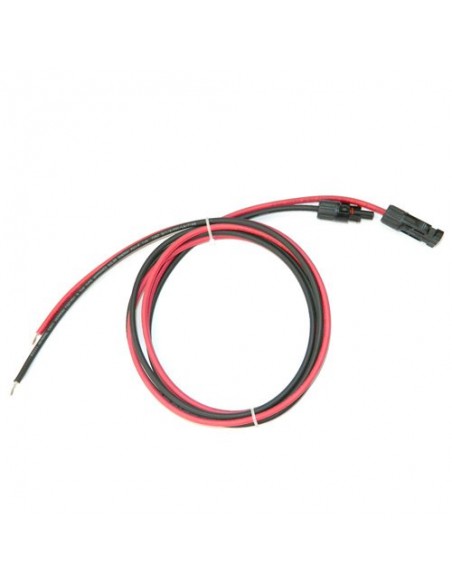

Solar Cable Set 6mm 5mt RED and 5mt BLACK with MC4 Connectors
Solar Cable Set 6mm 5mt RED and 5mt BLACK with MC4 Connectors

Solar Cable Set 6mm 5mt RED and 5mt BLACK with Connectors

CS5-6+MC
€25.23
VAT included 10 %

€22.94 Vat excl.

Solar Cables are suitable for fixed installation inside and outside, without protection or in pipes or cashed out, or similar closed systems. This set consists of 5 m cable Solar R / N with connectors.



Solar Cable Set 6mm 5mt R + 5mt B with Connectors

Solar Cables are suitable for fixed installation inside and outside, without protection or in pipes or cashed out, or similar closed systems. Ozone resistant according to E N50396. UV-resistant according to HD605 / A1. Cable tested for durability according to EN 60216. in continuous use temperature 120 ° C for 20,000 h (= 2.3 years) of continuous use temperature 9 ° C (= 30 years). Also suitable for laying underground direct and indirect.

The connectors are designed specifically for the connections of renewable energy plants. They are extremely safe and reliable, time-saving as they allow rapid connections are easy to use.
Their installation is simple, just a little 'manual;. The diameter of the connecting plug is 3 mm. In this listing are offered a pair of connectors: 1 male + 1 female connector.

Components of the Set

  N. Component Model Features Datasheet
1 Pair of Connectors
1 Solar Cable Set 6mm 5mt R + 5mt B

details

SPECIFICATIONS SOLAR CABLE

  • Flexible conductor: tinned copper Class 5 annealed
  • Insulation special rubber: HEPR G21
  • Sheath in crosslinked compound: M21 type
  • Rated voltage: 1200 V U0
  • Rated voltage: 1200V U
  • Test voltage: 4000 V
  • Maximum voltage: Um 1800Vcc also to ground
  • Maximum operating temperature: + 90 ° C + 120 ° C on the conductor
  • Maximum temperature of short circuit: + 250 ° C
  • Minimum temperature of installation and use: -40 ° C

TECHNICAL

  • Model Connector:
  • Withstand voltage: 1000V
  • Maximum current: 20A
  • Contact Material: Copper, coated with tin
  • contact system: Multileaf MC-Multilam
  • Withstand voltage: 1000V
  • ambienteda Temperature: - 40 ° to + 70 ° C (UL / AWG14)
  • Operating temperature: + 105 ° C (IEC / CEI)
  • Safety class: II
  • typical contact resistance 0.5 ohms

Downloads

    assistance

    For assistance with configuration and installations call
    0039 0882 22 82 47
    or write to
    [email protected]

    8380148797355
