Set Solar Cable 4mm 1mt Red and 1mt Black Photovoltaic Camper Nautic Boat
Set Solar Cable 4mm 1mt Red and 1mt Black Photovoltaic Camper Nautic Boat

Set Solar Cable 6mm 15mt Red and 15mt Black Photovoltaic Camper Nautic Boat

CAVSOL15mt-6
€68.59
VAT included 10 %

€62.35 Vat excl.

DC-DC Converter for charging a 12/24V service battery in vehicles with an intelligent dynamo.

The 50A Buck-Boost DC-DC Converter is a DC-DC converter for charging a 12/24V service battery in vehicles with an intelligent dynamo.

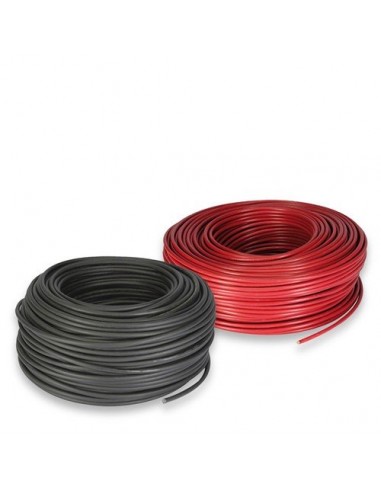

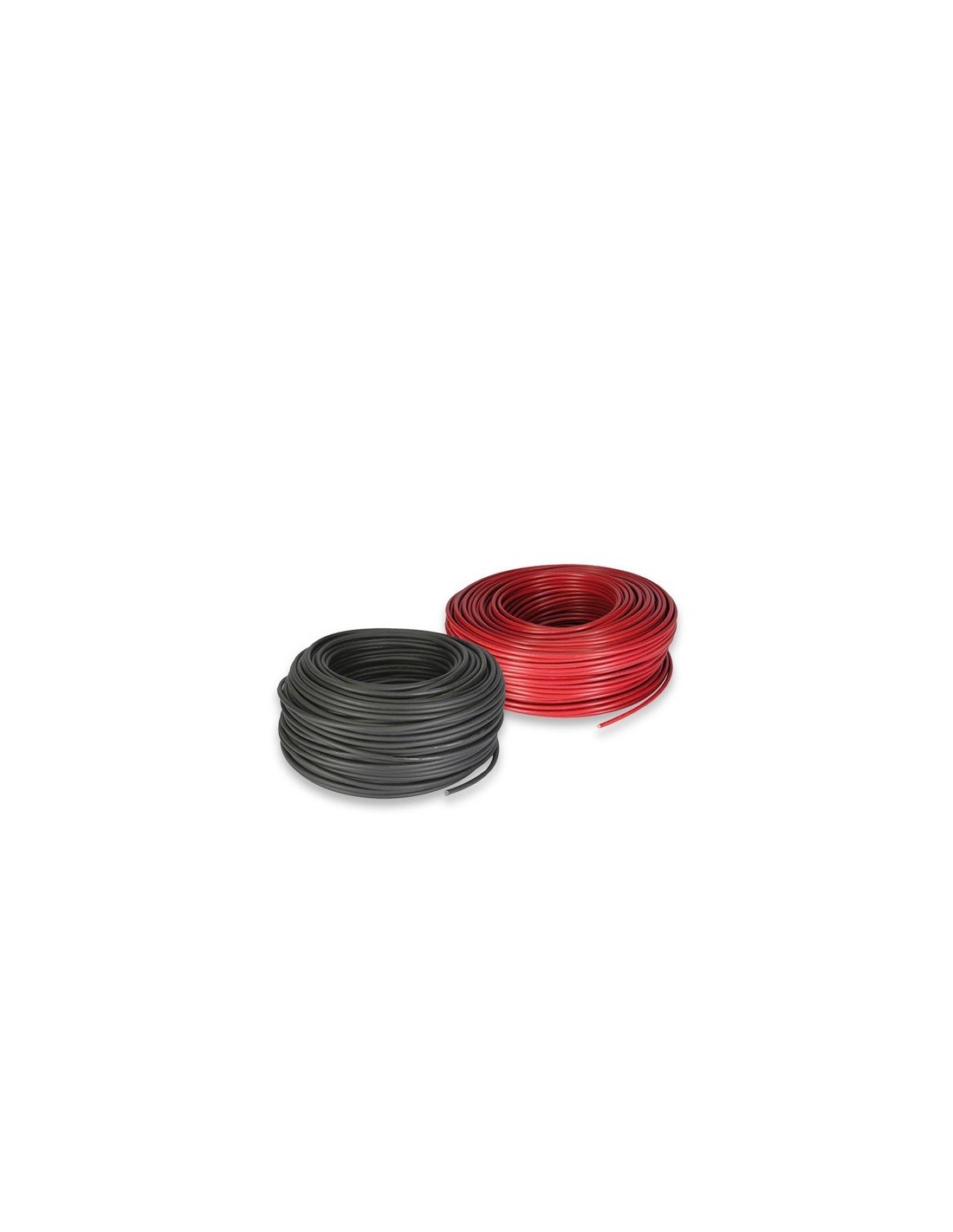

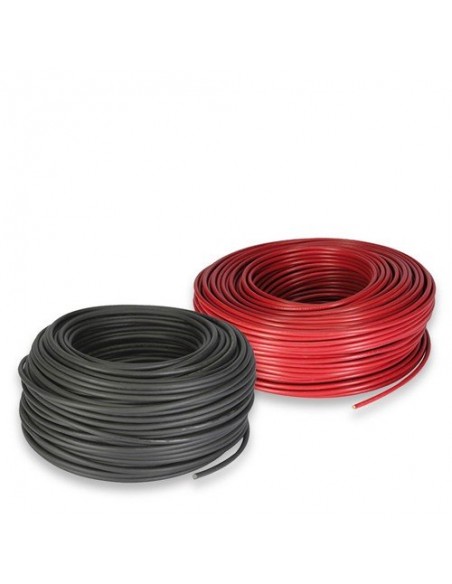

Solar Cable Set 15mt 6mm Photovoltaic Nautic Camper

DC-DC Converter for charging a 12/24V service battery in vehicles with an intelligent dynamo.

The 50A Buck-Boost DC-DC Converter is a DC-DC converter for charging a 12/24V service battery in vehicles with an intelligent dynamo. Since, when the engine is running, these dynamos (powered by the on-board electronics of Euro 5 and 6 engines) do not always emit the correct charging current, a DC-DC converter is essential for charging the service battery properly.




Components of the Set

N. Component Product Code Product Description Datasheet
15mt Solar Cable RED CAVSOL-6R Solar Cable RED 6mm
15mt Solar Cable BLACK CAVSOL-6N Solar Cable BLACK 6mm



Specifications Solar Cable

  • Flexible conductor: tinned copper Class 5 annealed
  • Insulation special rubber: HEPR G21
  • Sheath in crosslinked compound: M21 type
  • Rated voltage: 1200 V U0
  • Rated voltage: 1200V U
  • Test voltage: 4000 V
  • Maximum voltage: Um 1800Vcc also to ground
  • Maximum operating temperature: + 90 & deg; C + 120 & deg; C on the conductor
  • Maximum temperature of short circuit: + 250 & deg; C
  • Minimum temperature of installation and use: -40 deg; C



Manuals, Technical Specifications and Certifications

Assistance
  For service or plant configuration call 0882 22 82 47
  For technical assistance, write to [email protected]
