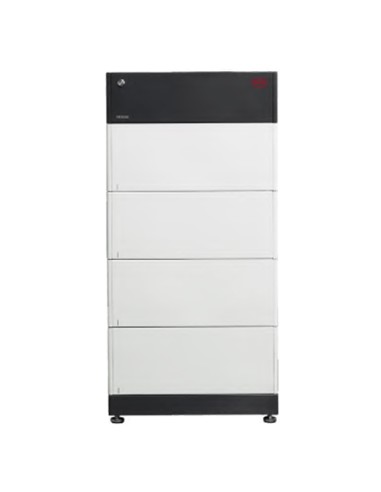

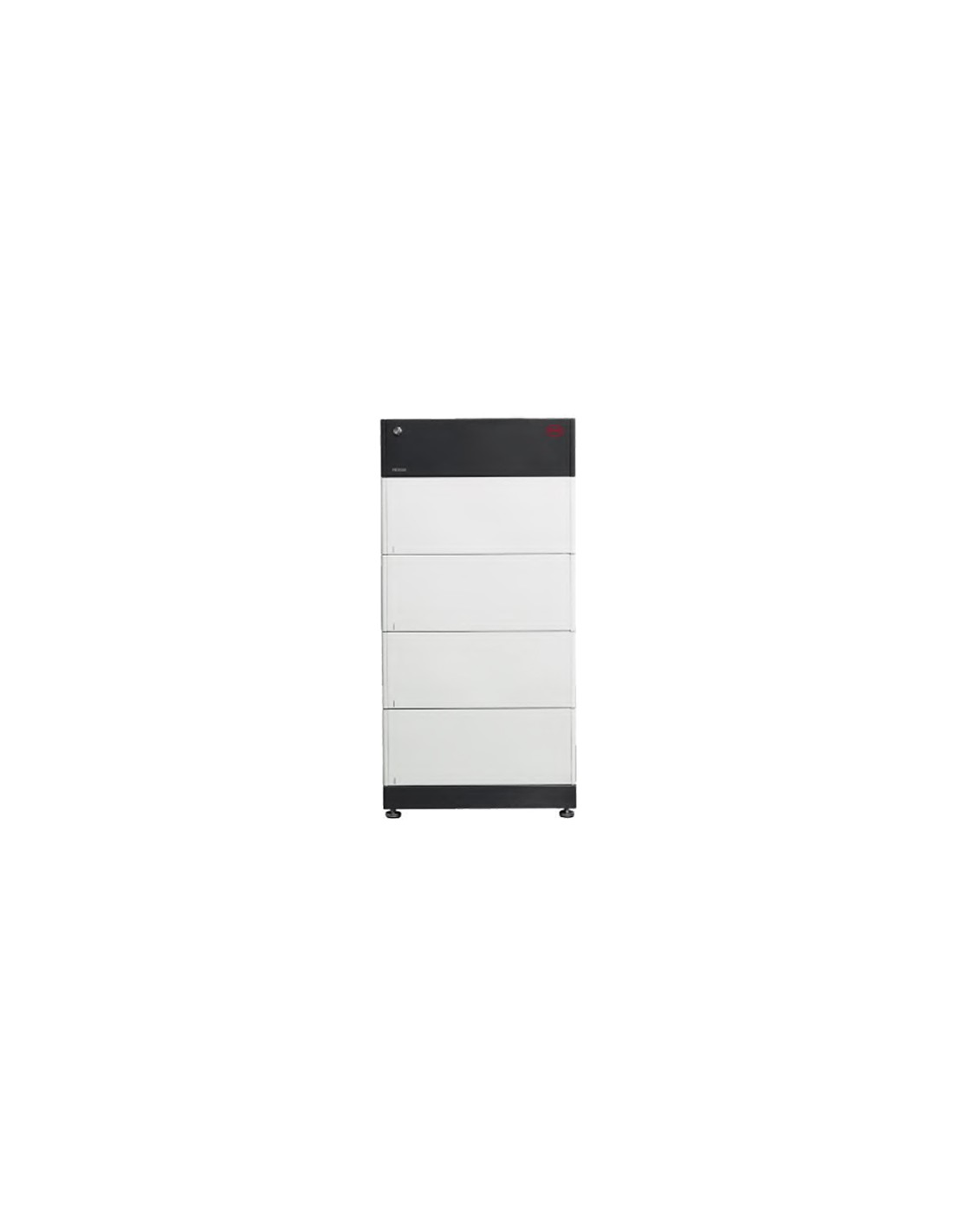

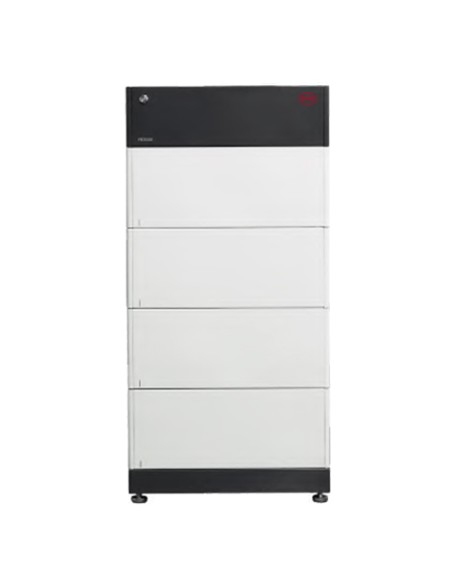

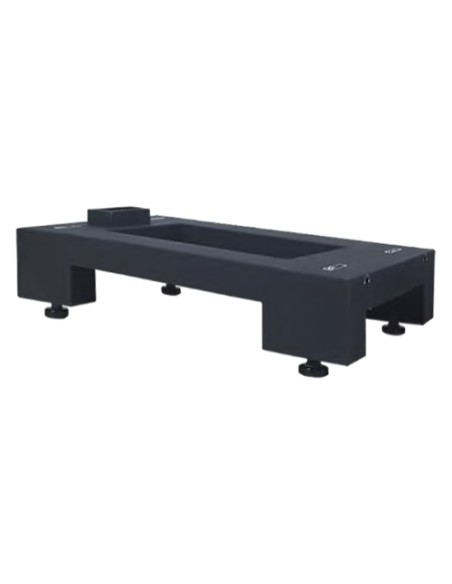

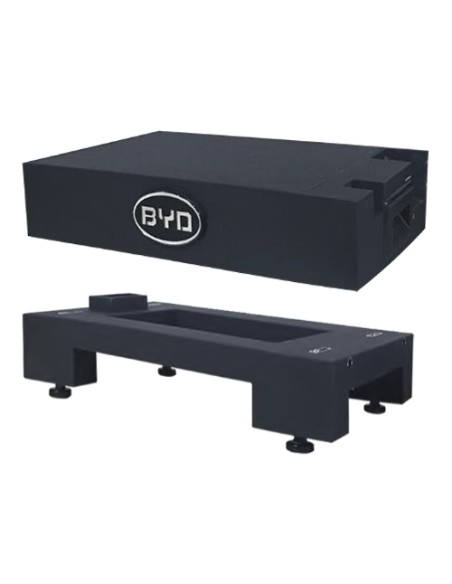

10.2kWh storage system in high voltage BYD HVS

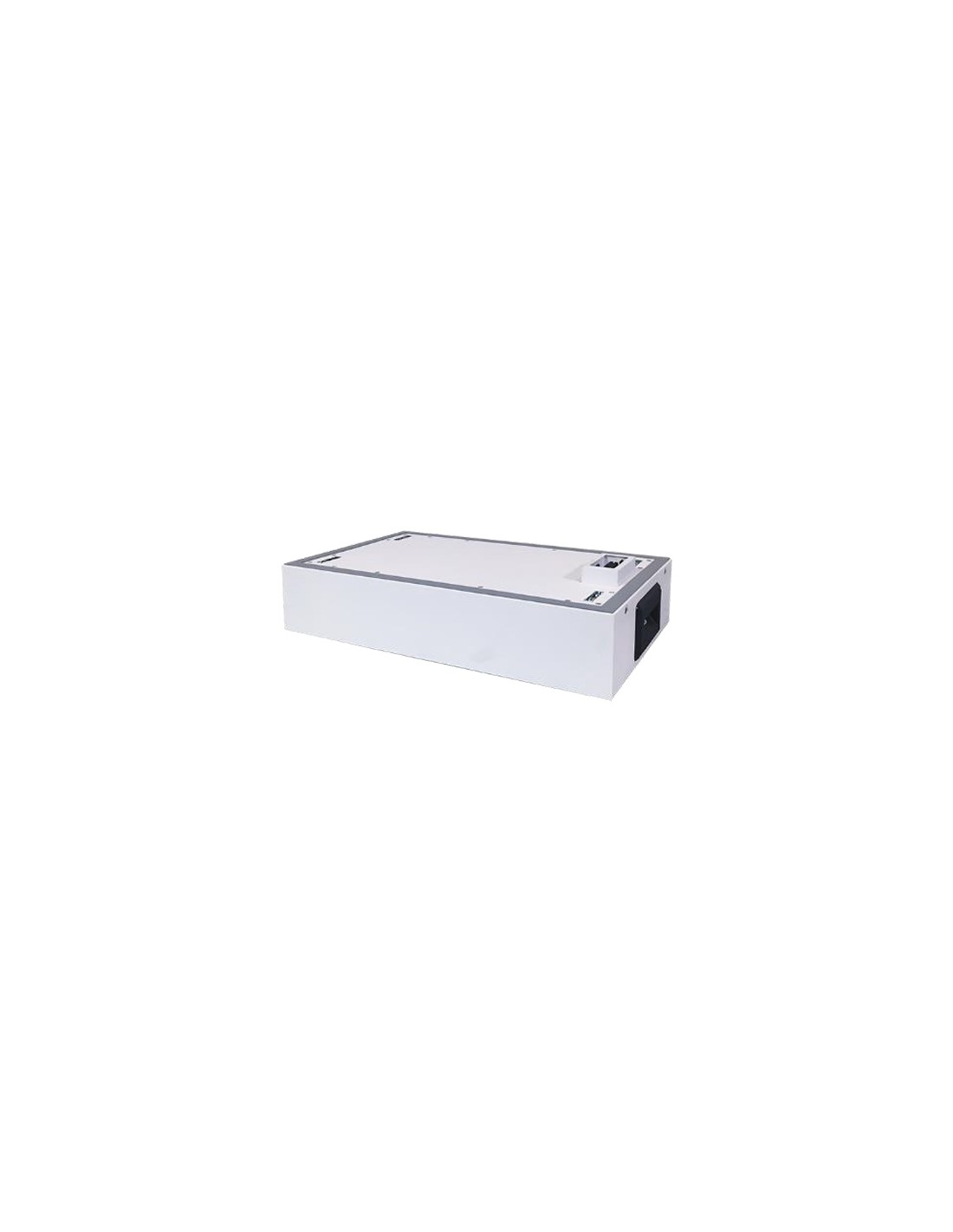

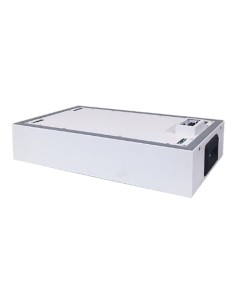

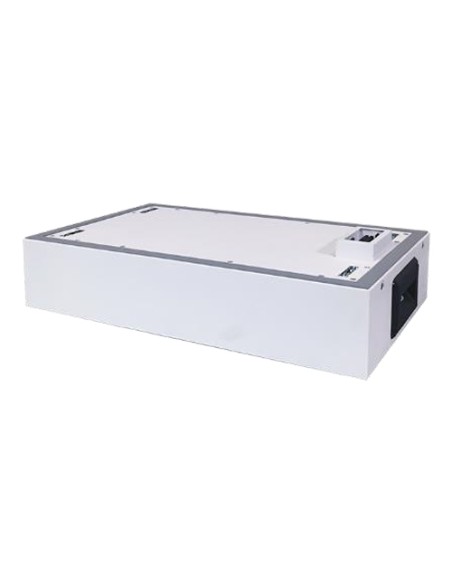

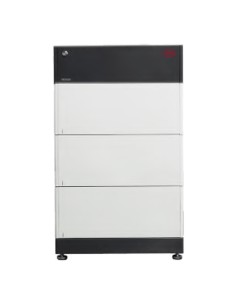

Battery-Box Premium HVS is composed of 2 to 5 HVS modules connected in series to obtain a usable capacity from 5.1 to 12.8kWh. The parallel connection of up to 3 equal towers of Battery-Box Premium HVS allows a maximum capacity of 38.4kWh. Additionally, this model offers the ability to scale by adding HVS modules or parallel HVS towers at any time.

Main features

• High Power Backup and Off-Grid Functions;
• Maximum efficiency thanks to a real high voltage series connection;
• Patented plug-in design without internal cables that allows maximum flexibility and ease of use;
• Cobalt-free lithium iron phosphate (LFP) battery: maximum safety, life cycle and power;
• Compatible with single-phase and three-phase inverters;
• Two models to satisfy all types of needs;
• The highest safety standards such as VDE 2510-50.

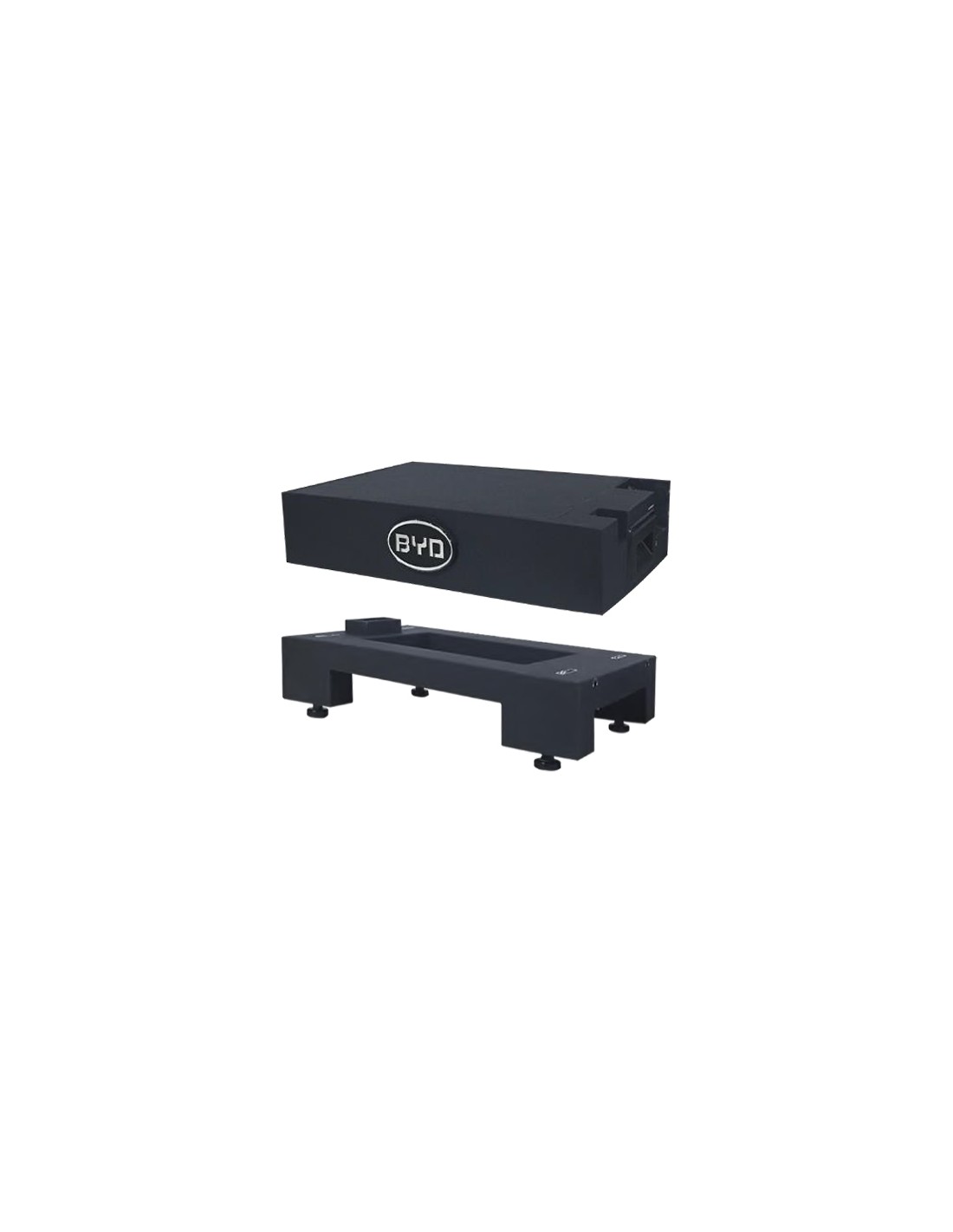

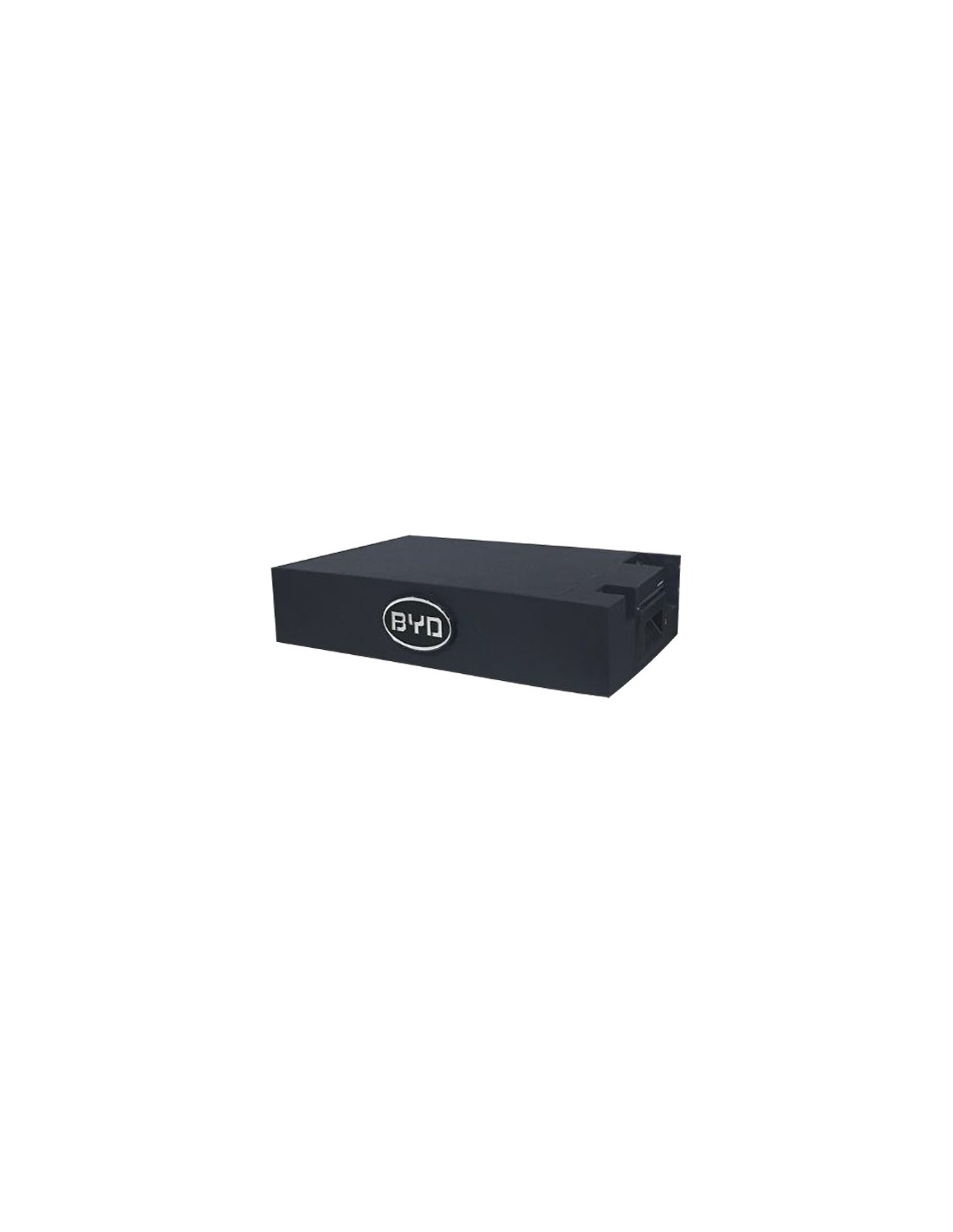

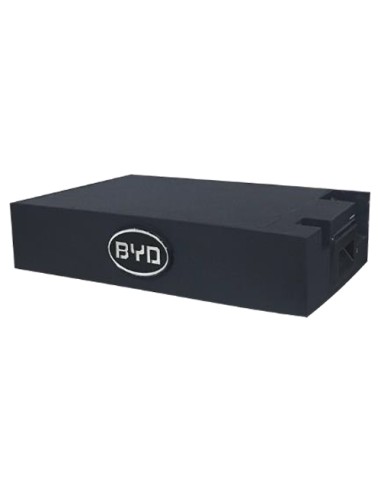

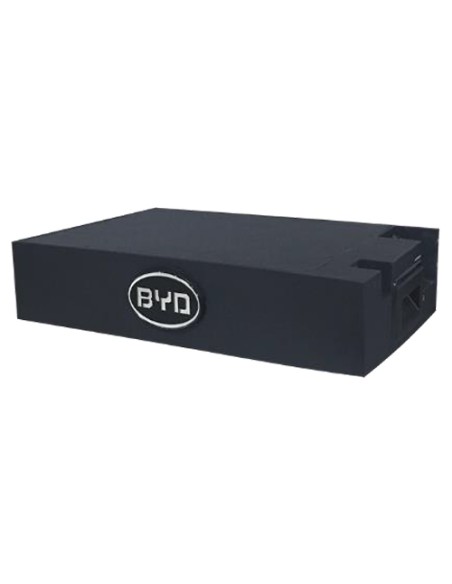

NOTE: BYD HVS battery consists of a minimum of 2 HVS + BMS modules to a maximum of 5 HVS + BMS modules, it is possible to connect them in series to obtain a capacity from 5.1kWh to 12.8kWh.

For more details, download the following documents:

• Datasheet: [Download]

Technical features
