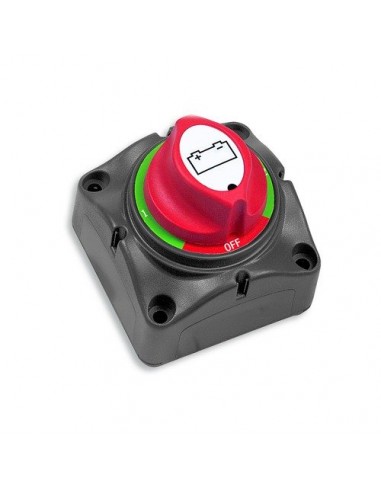

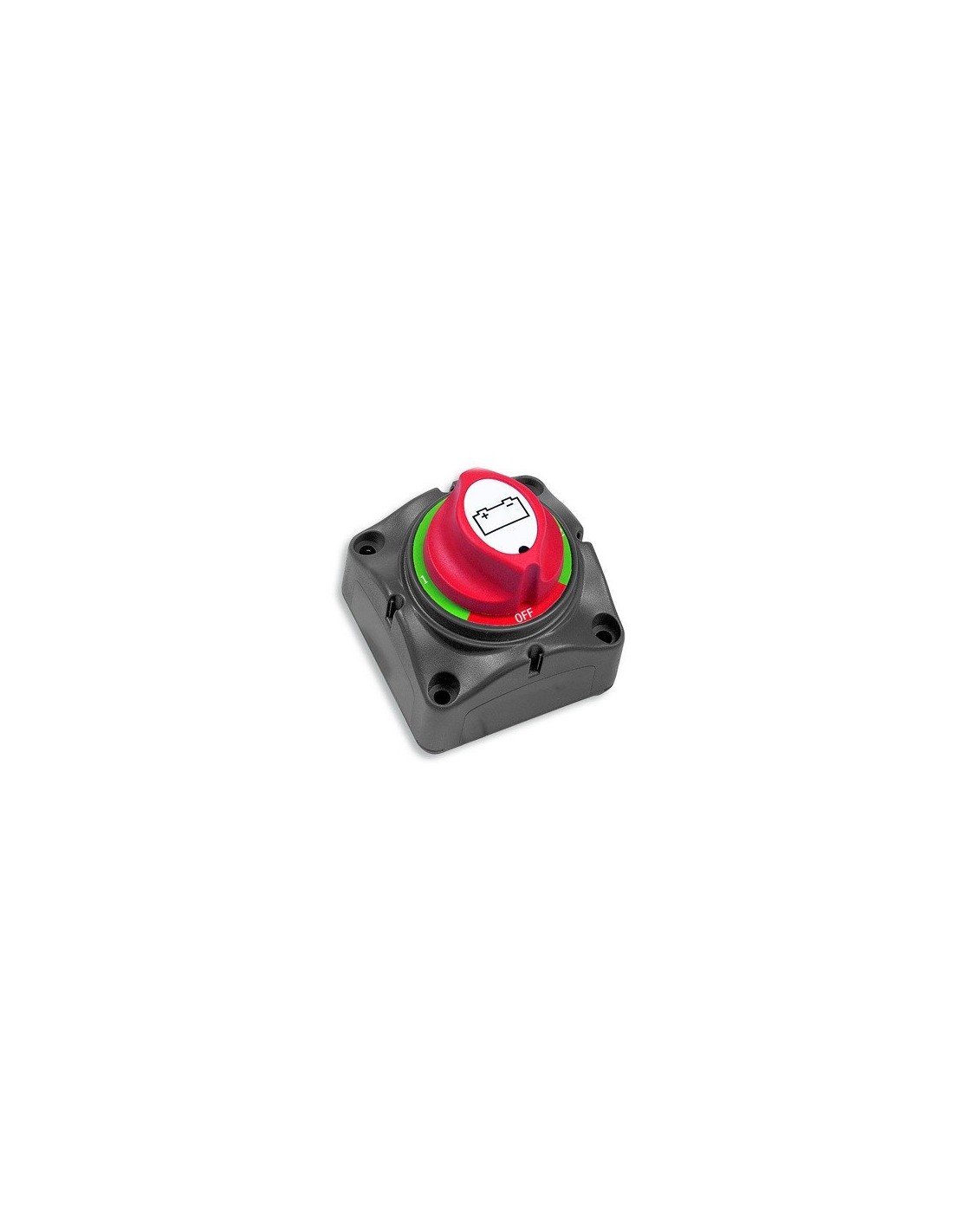

The battery cut-off is used to disconnect the batteries, or to interrupt the electrical circuit, safely, in case of emergency or maintenance.
This product can be installed alone or in series. The knob cannot be removed in positions "on" and "off" but can be removed by rotating it by 45° clockwise.
Self-cleaning contacts and rear cover copricontatti. Can be mounted or recessed Panel with a 52 mm hole.
TECHNICAL DATA
| Rating | 275 to continuous 455 to intermittent 1250 to peak for 10 seconds Max Voltage |
| 48V DC | Positions |
| 2 | Action |
| Logon/Off | Dimensions |
| 70 x 70 x 76 mm | Terminal size |
| 2 x 10 mm |
