Battery Combiner Cyrix Li-Ct 12/24V 120A Victron Energy

Name: Battery Combiner Cyrix Li-Ct 12/24V 120A Victron Energy
Brand: Victron Energy
SKU: CYR010120412
Price: 90.8 EUR
Availability: InStock

Reference CYR010120412

Last items in stock

€90.80

VAT included 22 %

€74.43 Vat excl.

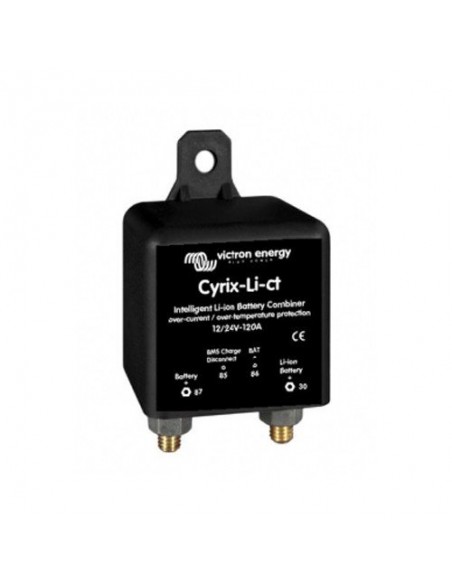

Cyrix Li-Ct 12/24V 120A

Model: CYR010120410

The Cyrix Battery Combiner is a microprocessor controlled heavy duty relay that automatically connects batteries in parallel when one of them has reached a pre-set voltage (indicating that the battery is being charged), and disconnects when the voltage decreases below float level (indicating that one or more batteries are being discharged). Cyrix Battery Combiners are an excellent replacement for diode isolators. The main feature is that there is virtually no voltage loss so that the output voltage of alternators or battery chargers does not need to be increased.

Features

Model: CYR010120410

Voltage and current plug: 12V-24V 120A

Current consumption when open: <4mA

Connecting bolts and connecting cables: 13mm (M6)

Protection: IP54

Weight: 110g

Dimensions (h x w x d) mm: 46 x 46 x 80

Warranty

2 Year Warranty

Certifications

Electrical Specification

-	Voltage of 12V-24V system up to a maximum of load 120A
-	Automatically disconnects the battery when it reaches the minimum voltage or the law of the excessive fluctuations in the download, and you hang yourself as he hears the following voltages 13V for 12V systems and 26V for 24V systems, a sign that the battery is being charged
-	Releases automatically if reads a temperature rise of LiFePO4 battery.
-	Alarm notification and automatic recovery through management unit VE.Bus BMS
-	The Li-Charge of Cyrix Cyrix system and Li-Load must be matched to the mandatory VE.Bus BM control unit without the unit may not work
