€74.43 Vat excl.
The Cyrix Battery Combiner is a microprocessor controlled heavy duty relay that automatically connects batteries in parallel when one of them has reached a pre-set voltage (indicating that the battery is being charged), and disconnects when the voltage decreases below float level (indicating that one or more batteries are being discharged).
 |

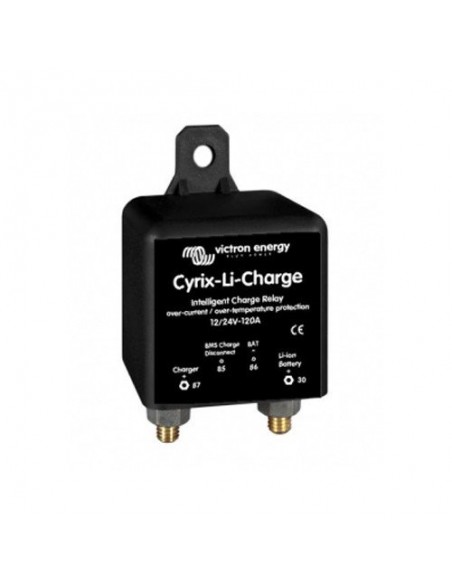

Cyrix Li-Charge 12/24V 120AModel: CYR010120430 |
|
The Cyrix Battery Combiner is a microprocessor controlled heavy duty relay that automatically connects batteries in parallel when one of them has reached a pre-set voltage (indicating that the battery is being charged), and disconnects when the voltage decreases below float level (indicating that one or more batteries are being discharged). Cyrix Battery Combiners are an excellent replacement for diode isolators. The main feature is that there is virtually no voltage loss so that the output voltage of alternators or battery chargers does not need to be increased.
| Model: CYR010120430 |
| Voltage and current plug: 12V-24V 120A |
| Connect voltage: 13,7V / 27,4V |
| Current consumption when open: <4mA |
| Connecting bolts and connecting cables: 13mm (M6) |
| Protection: IP54 |
| Weight: 110g |
| Dimensions (h x w x d) mm: 46 x 46 x 80 |
 |
2 Year Warranty |
| - | Voltage of 12V-24V system up to a maximum of load 120A |
| - | Automatically disconnects the battery when approaching the maximum charging voltages and precisely 13,7V for 12V systems and 27,4V for 24V systems |
| - | Off automatically if either overvoltage or overtemperature sudden Battery |
| - | Alarm notification and automatic recovery through management unit VE.Bus BMS |
| - | The Li-Charge of Cyrix Cyrix system and Li-Load must be matched to the mandatory VE.Bus BM control unit without the unit may not work |
 |
