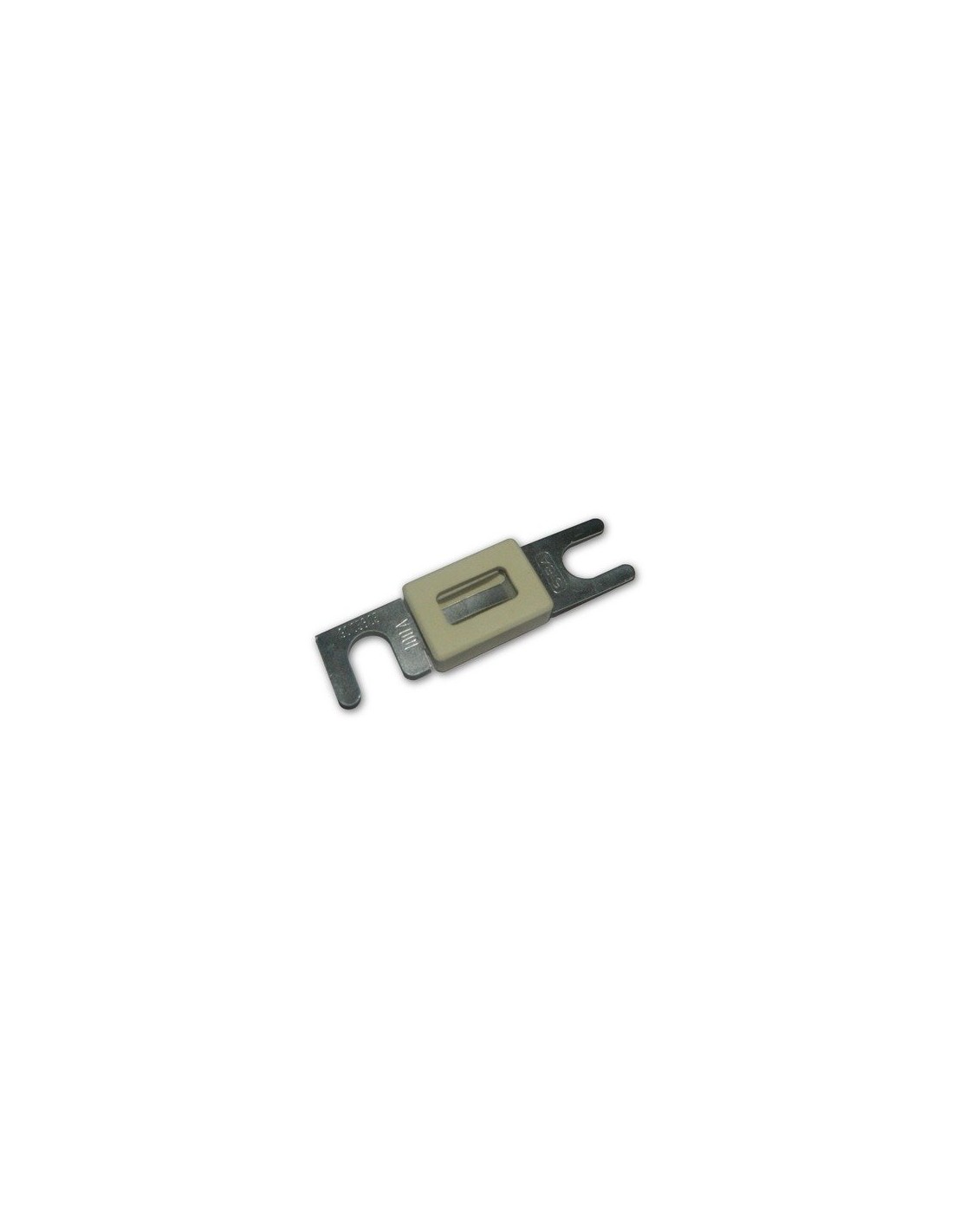

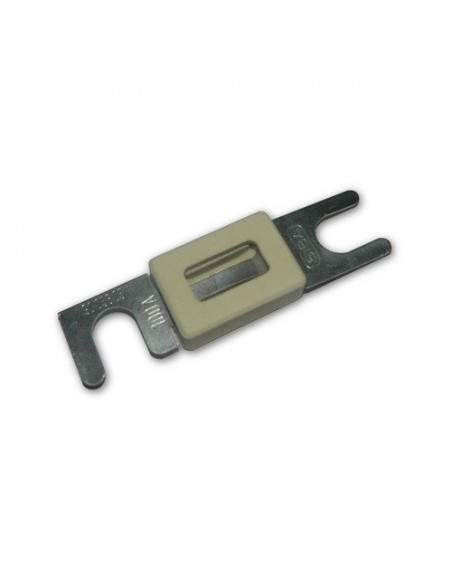

60x11 FUSE 150A CLOSED BATTERY

This fuse allows to protect an electrical line to direct or alternating current. Typically, it can be used in low-voltage lines, direct current, as protection in wind farms/solar cells, and for rapid intervention.

Security is implemented through the fuse, which is inserted in a CNN-type fuse-base (available in our store). The fuse supports until his current interruption, for higher currents it breaks the circuit, avoiding short circuits, fires and situations where there are large current losses.

This fuse has a breaking current 150 tothat translated into terms of power means a maximum load by:

• 1800 W on a 12 V line
• 15 kW on a 100 V line



The maximum working voltage is 130 V a.c. and 75 V DC.

The external dimensions are: 82x23 mm. The fuse type is 60x11, then the DIN fitting is to be carried out on remote holes 60 mm and 11 mm in diameter.
