ZVM-CONNEXT
Last items in stock
€241.82
VAT included 10 %

€219.84 Vat excl.

The ZCS CONNEXT system is able to fully supervise and control all ZCS devices.

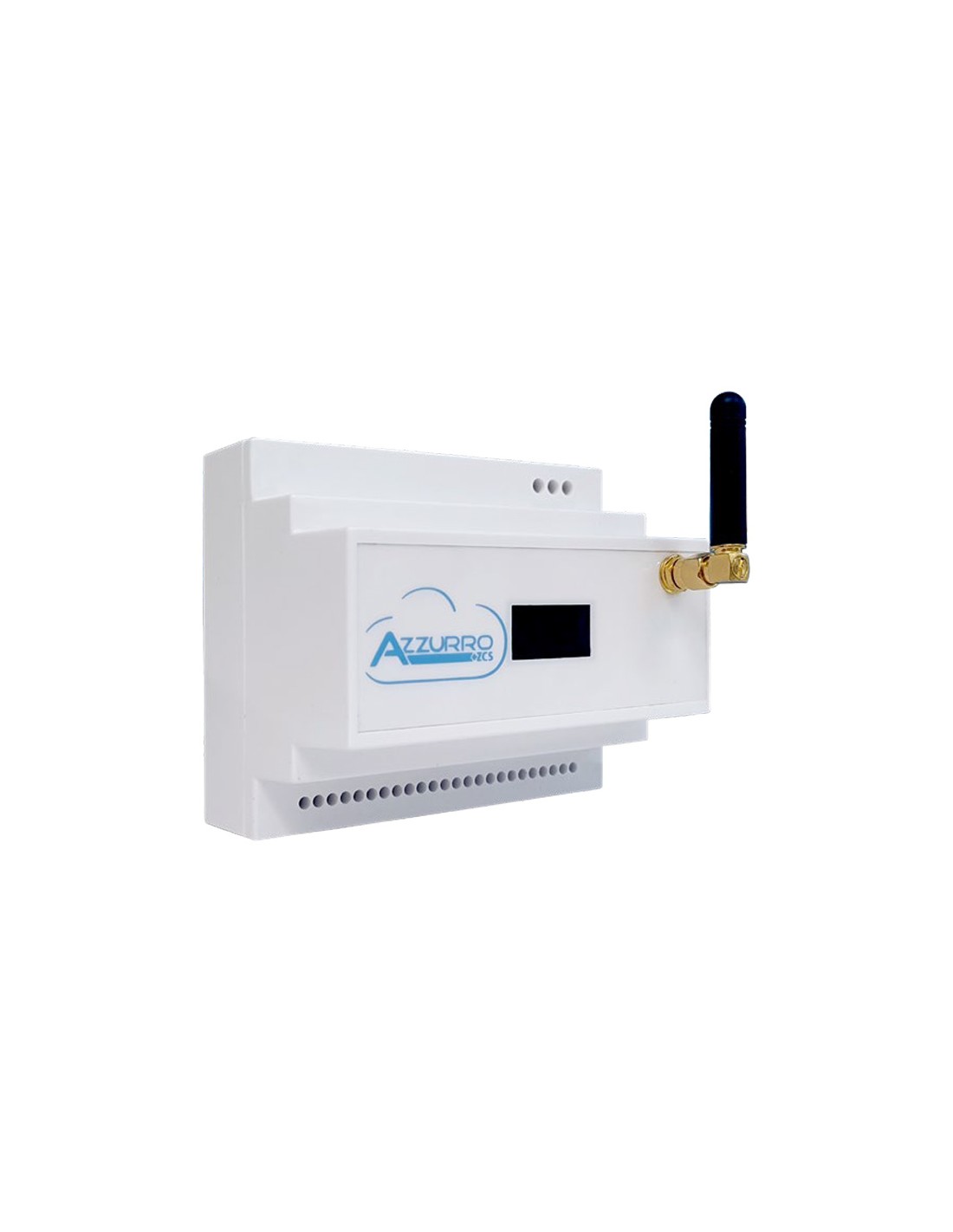

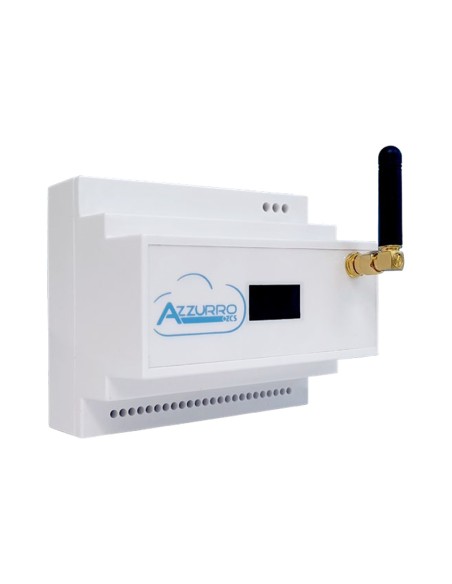

ZCS Azzurro charging station and inverter control and monitoring module

Main features

The ZCS CONNEXT system is able to fully supervise and control all ZCS devices.
Connectable to photovoltaic and storage systems and to ZCS Azzurro electric vehicle charging stations, it allows the monitoring and control of all systems in an intelligent and predictive manner.
The settable functions allow smart use of renewable energy and accurate programming of the charging of the storage batteries or the electric vehicle.

For more details, download the following documents:

Technical features

Technical data
Dimensions (H*W*D) 89 x 105 x 65 mm
Weight 300g
Protection class IP20
Montage On DIN rail
Power supply Integrated 110V-230V power supply
Operating temperature range 0°C...+40°C
Allowed relative humidity range 0….95% non-condensing
User interface Graphic display
Communication ports with Azzurro devices RS485, CAN bus
Ports for current sensor input 2
Additional input/output ports 2x DO Open Collector, 2x dry contacts, 2x DI, 2x PT100, internal USB, optional Bluetooth
Consumption < 7W
