€49.26 Vat excl.

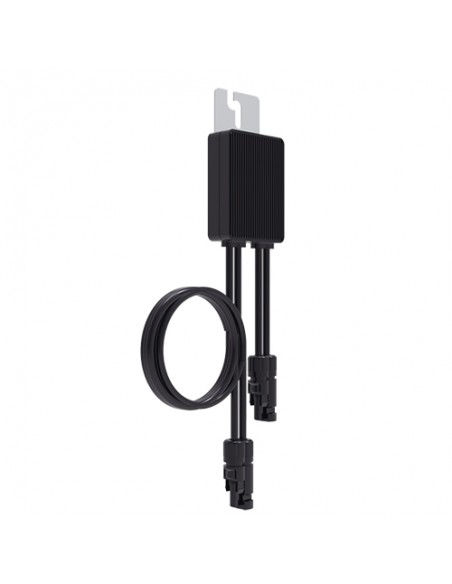

An Optimizer adapts to all possible application scenarios Up to 30% more energy by optimizing the performance of each module. Lower BoS Costs and Higher Oversizing with Long String Design.
An Optimizer adapts to all possible application scenarios Up to 30% more energy by optimizing the performance of each module. Lower BoS Costs and Higher Oversizing with Long String Design.
Module level voltage shutdown for safe installation and maintenance. Supports locating arc flash faults.
| Input | |||
| Rated Input DC Power | 600W | ||
| Absolute maximum input voltage | 80V | ||
| MPPT operating voltage range | 10 - 80V | ||
| Maximum Short Circuit Current (Isc) | 14.5 A | ||
| Max. efficiency | 99.5 % | ||
| Weighted efficiency | 99.0 % | ||
| Overvoltage category | II | ||
| Output | |||
| Max. output voltage | 80V | ||
| Max. output current | 15A | ||
| Output bypass | yes | ||
| Shutdown output voltage per optimizer | 0V | ||
| Shutdown output impedance per optimizer | 1k ohm ± 10 % | ||
| Comunication | |||
| Communication method | MBUS | ||
| Standard Compliance | |||
| Safety | IEC62109-1 (class II safety) | ||
| RoHS | Yes | ||
| General Data | |||
| Dimension (W x H x D) | 75 x 140 x 28 mm (3.0 x 5.5 x 1.1 inch) | ||
| Weight (including cables) | 0.6 kg (1.3 lb.) | ||
| Installation part (optional) | Frame Mounting Bracket / T-shaped Bolt 4 | ||
| Input connector | Staubli MC4 | ||
| Output connector | Staubli MC4 | ||
| Output wire length | 1.3 m (4.3 ft.) | ||
| Operating temperature / humidity range | 40 ℃～85 ℃ 5 / 0 %RH～100 %RH | ||
| Degree of protection | IP68 | ||
| Compatible product | SUN2000-2/3/3.68/4/4.6/5/6KTL-L1, SUN2000-3/4/5/6/8/10KTL-M1, SUN2000-12/15/17/20KTL-M2, SUN2000-30/36/40KTL-M3 | ||
