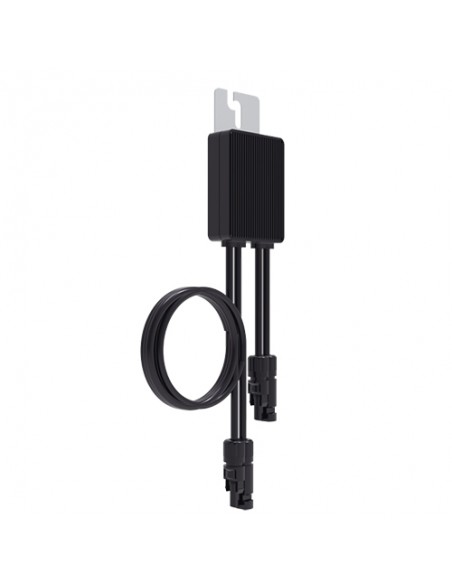

Power Optimizer Huawei Smart PV SUN2000-450W-P2 for photovoltaic modules
Power Optimizer Huawei Smart PV SUN2000-450W-P2 for photovoltaic modules

Power Optimizer Huawei Smart PV SUN2000-450W-P2 for photovoltaic modules

HUW-SUN-SUN2000-450W-P2
€51.18
VAT included 10 %

€46.53 Vat excl.

An Optimizer adapts to all possible application scenarios Up to 30% more energy by optimizing the performance of each module. Lower BoS Costs and Higher Oversizing with Long String Design.



Power Optimizer Huawei Smart PV SUN2000-450W-P2

An Optimizer adapts to all possible application scenarios Up to 30% more energy by optimizing the performance of each module. Lower BoS Costs and Higher Oversizing with Long String Design.

Module level voltage shutdown for safe installation and maintenance. Supports locating arc flash faults.

Main features:

  • Huawei L1, M1, M2, M3 inverter compatibility;
  • Nominal Input Power 450 Wp;
  • Absolute max input voltage 80 Voc;
  • MPPT Voltage Range 10 - 80V;
  • Max efficiency 99.5%;
  • Dimensions 75 x 140 x 28 mm;
  • Weight 0,6Kg;
  • MC4 input and output connectors;
  • Degree of protection IP68.

For more details, download the following documents:

TECHNICAL FEATURES

Input
Rated Input DC Power 450W
Absolute maximum input voltage 80V
MPPT operating voltage range 10 - 80V
Maximum Short Circuit Current (Isc) 14.5 A
Max. efficiency 99.5 %
Weighted efficiency 99.0 %
Overvoltage category II
Output
Max. output voltage 80V
Max. output current 15A
Output bypass yes
Shutdown output voltage per optimizer 0V
Shutdown output impedance per optimizer 1k ohm ± 10 %
Comunication
Communication method MBUS
Standard Compliance
Safety IEC62109-1 (class II safety)
RoHS Yes
General Data
Dimension (W x H x D) 75 x 140 x 28 mm (3.0 x 5.5 x 1.1 inch)
Weight (including cables) 0.6 kg (1.3 lb.)
Installation part (optional) Frame Mounting Bracket / T-shaped Bolt 4
Input connector Staubli MC4
Output connector Staubli MC4
Output wire length 1.3 m (4.3 ft.)
Operating temperature / humidity range 40 ℃～85 ℃ 5 / 0 %RH～100 %RH
Degree of protection IP68
Compatible product SUN2000-2/3/3.68/4/4.6/5/6KTL-L1, SUN2000-3/4/5/6/8/10KTL-M1, SUN2000-12/15/17/20KTL-M2, SUN2000-30/36/40KTL-M3
