CCA Cloud Connected Advanced Tigo TS4 communication and monitoring system
CCA Cloud Connected Advanced Tigo TS4 communication and monitoring system

CCA Cloud Connected Advanced Tigo TS4 communication and monitoring system

CCA-KIT
€186.64
VAT included 10 %

€169.67 Vat excl.

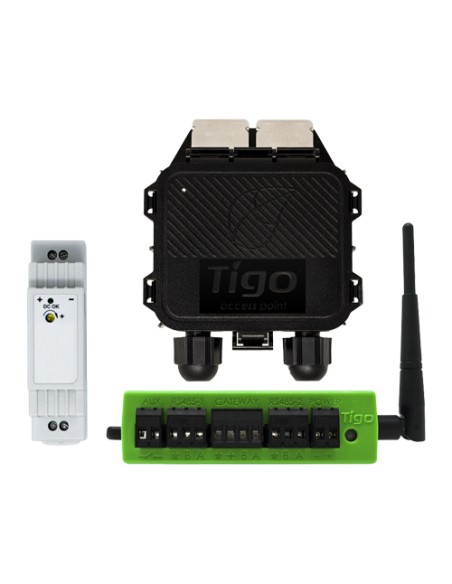

The Cloud Connect Advanced (CCA) is a compact and powerful data logger and is the communication center of Tigo's TS4 platform. Enhance the monitoring and security capabilities of Tigo smart modules.



CCA Cloud Connected Advanced Tigo TS4 communication and monitoring system

The Cloud Connect Advanced (CCA) is a compact and powerful data logger and is the communication center of Tigo's TS4 platform. Enhance the monitoring and security capabilities of Tigo smart modules.

Main features

  • Connectivity: View module-level data using the Tigo cloud and quickly get new installations up and running with the Tigo SMART app for Android and OS;
  • Protection: An IP68-rated enclosure is available for outdoor installations. Mount the CCA on the supplied DIN rail with space for cables, and up to an input level AC meter;
  • Installation Options: The CCA can be installed indoors or outdoors. Select the DIN rail for power or a standard outlet.

For more details, download the following documents:

TECHNICAL FEATURES

MECHANICAL SPECS (CCA)
Operating temperature range -20°C a +70°C
Protection class IP68
Raffreddamento natural convention
Dimensions (W x L x H) 31 x 115.51 x 71.54mm
Weight 126 g
MECHANICAL SPECS (TAP)
Operating temperature range -30°C a +70°C
Protection class IP68, Type 4R
Dimensions (W x L x H) 126.2 x 130.0 x 26.8mm (with stand)
Weight 227 g
