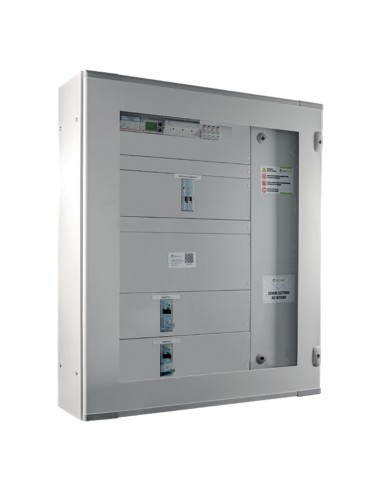

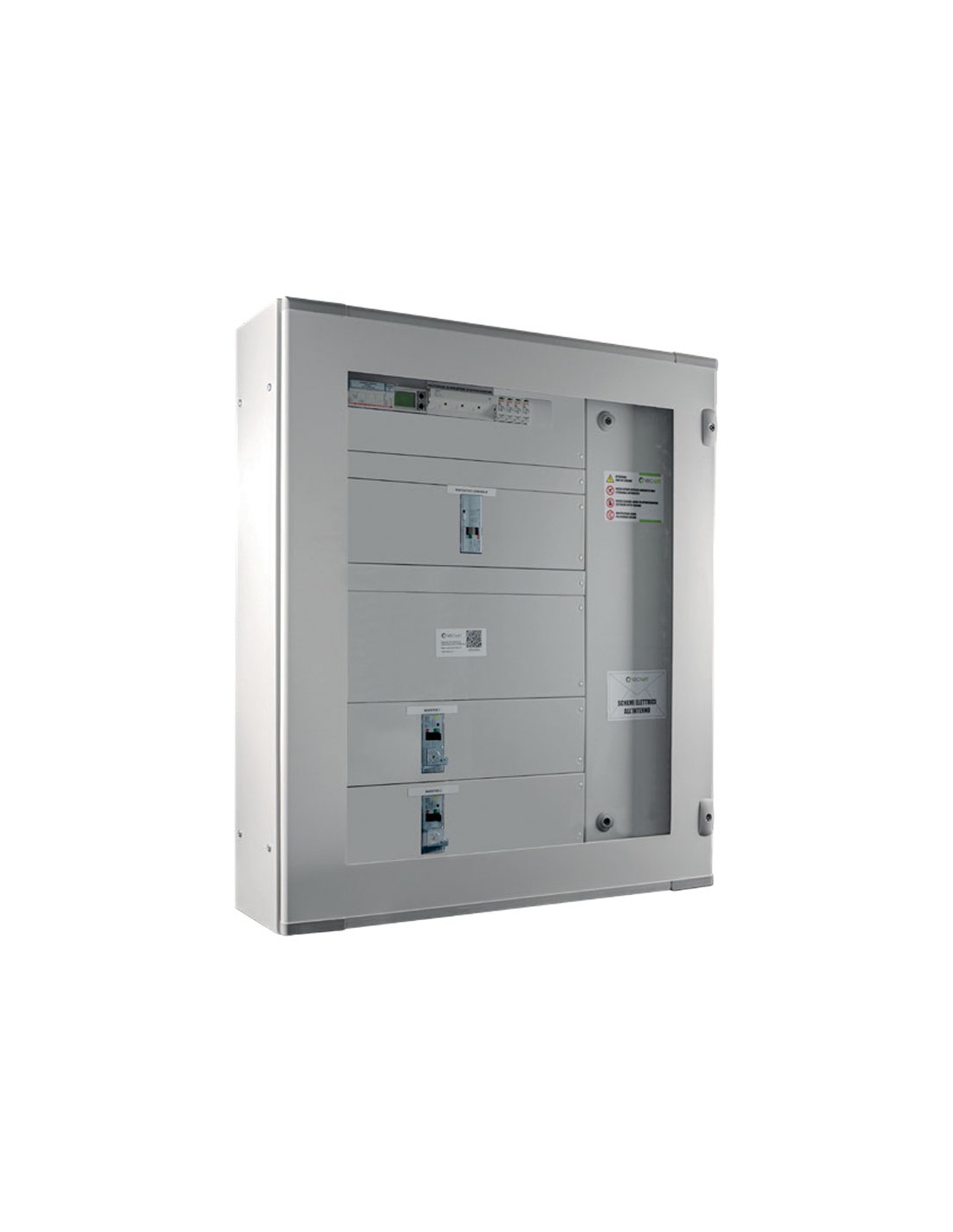

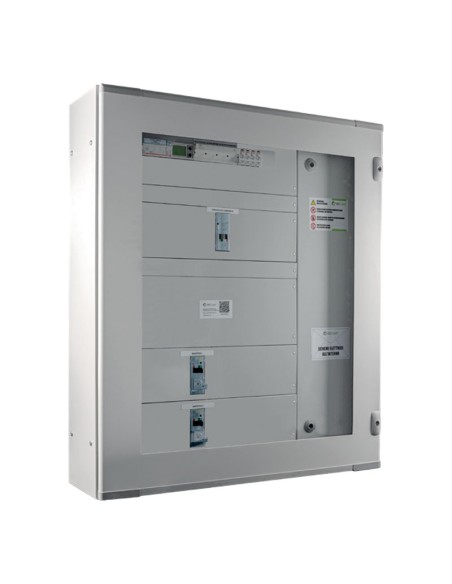

Three-phase AC photovoltaic Interface Panel 500kW for 5 inverters

Three-phase AC photovoltaic Interface Panel 500kW for 5 inverters

Name: Three-phase AC photovoltaic Interface Panel 500kW for 5 inverters
Brand: Secsun
SKU: QIT500-5
Price: 21962.92 EUR
Availability: InStock

Reference QIT500-5

Last items in stock

€21,962.92

VAT included 10 %

€19,966.29 Vat excl.

AC 100kW interface panel for three-phase solar photovoltaic systems.
AC panels are essential to ensure safety of both the photovoltaic system and the existing electrical system.

WITH TEST REPORT

Three-phase AC photovoltaic Interface Panel 500kW for 5 inverters

AC panels are essential to ensure safety of both the photovoltaic system and the existing electrical system. The AC panels are placed between the inverters and the power supply panel and serve to interrupt, in the event of maintenance, the flow of alternating current both in and out. Our AC panels are composed of circuit breakers and position switch.

All paintings are composed of primary brands:

Four-pole disconnect switch (general panel) complete with possible release coil for systems above 20kWp for backup control as required by current legislation;
20 kA three-phase surge arrester with relative protection;
Interface relay compliant with CEI 021 and CEI 0-16 regulations, equipped with fast fuse protections on the three-phase line entering the SPI and on its power supply line;
The interfaces are set with default values foreseen by the standard, with the possibility of being customized on request;
Meter sized with AC3 flow rate;
Differential circuit breakers of adequate capacity, class A breaking capacity of 6 kA 300 mA for the protection of each inverter;
Carpentry made of metallic or thermoplastic material with IP65/IP66 protection rating, resistant to dynamic and atmospheric agents;
Silk-screened indicator plates and wire and terminal numbering system, terminal blocks and any other requirement for the correct assembly of the panel.
