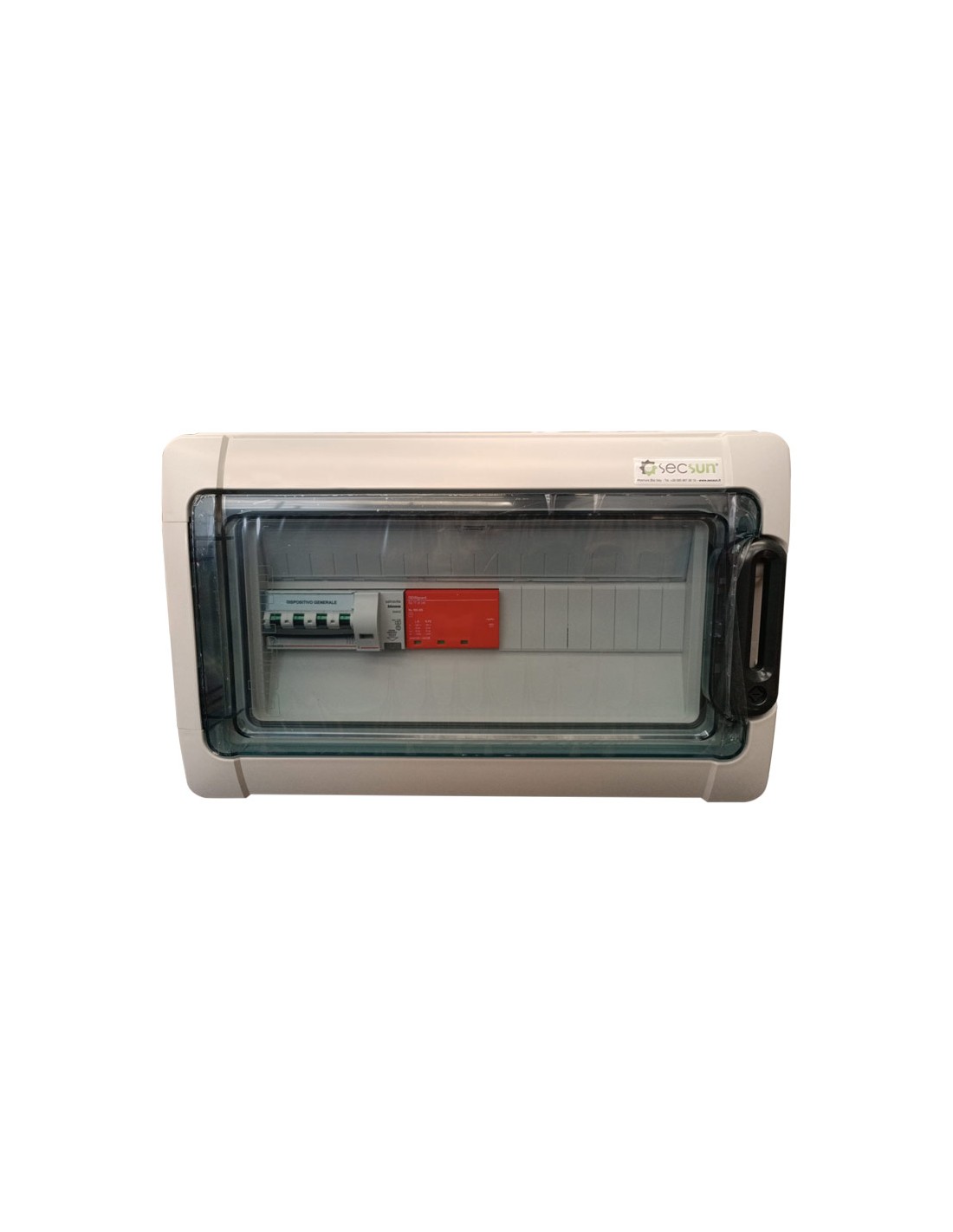

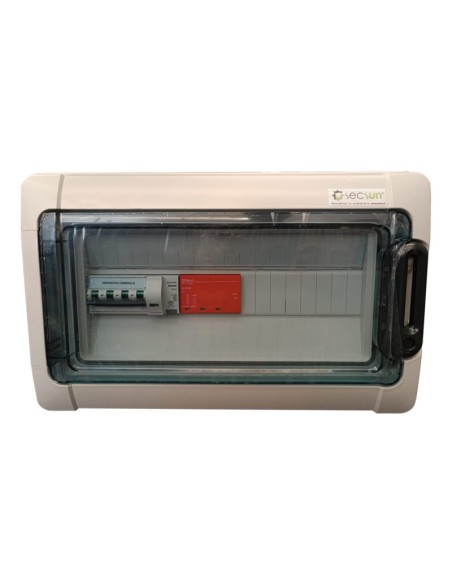

10kWp photovoltaic AC interface electrical panel for three-phase systems

10kWp photovoltaic AC interface electrical panel for three-phase systems

10kWp photovoltaic AC interface electrical panel for three-phase systems

Reference QAC-10KW

Last items in stock

€344.82

VAT included 10 %

€313.47 Vat excl.

10kW AC interface electrical panel for three-phase solar photovoltaic systems.

AC panels are essential to ensure safety of both the photovoltaic system and the existing electrical system.

10kWp photovoltaic AC interface electrical panel for three-phase systems

AC panels are essential to ensure safety of both the photovoltaic system and the existing electrical system. The AC panels are placed between the inverters and the general domestic power supply panel and serve to interrupt, in the event of maintenance, the flow of alternating current both in and out. Our AC panels are composed of circuit breakers and position switch.

Customer service

0882 22 82 47

[email protected]

EAN13 8370000029175
